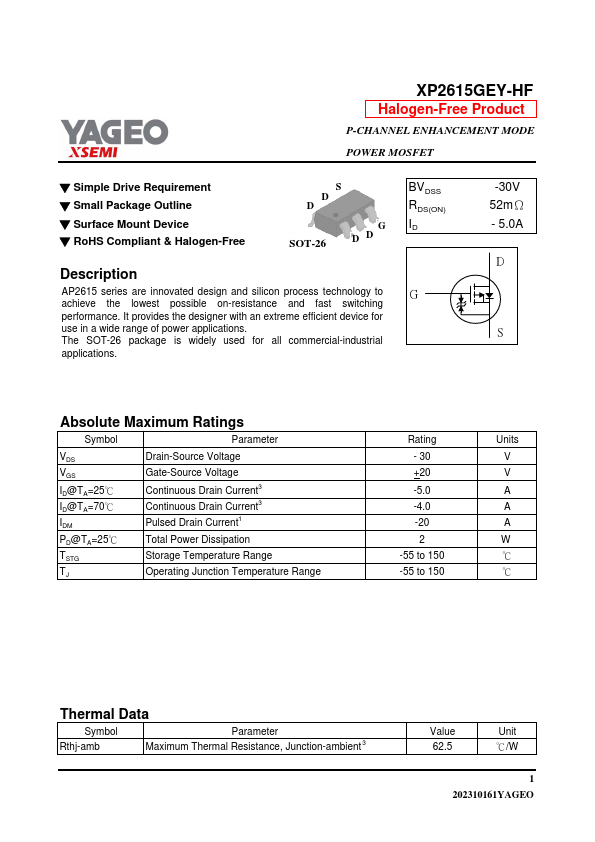

XP2615GEY-HF P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP2615GEY-HF Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Small Package Outline ▼ Surface Mount Device ▼.
AP2615 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP2615GEY-HF Datasheet Preview — Preview of XP2615GEY-HF PDF

Datasheet Specifications

Part number: XP2615GEY-HF
Manufacturer: YAGEO
File Size: 191.89 KB
Datasheet: XP2615GEY-HF-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-26 package is widely used for all commercial-industrial applications. BVDSS RDS(ON) ID G -30V 52mΩ - 5.0A D S Absolute Maximum Ratings Symbol Parameter VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Continuous Drain Current3 Continuous Drai
