XP2622GY - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

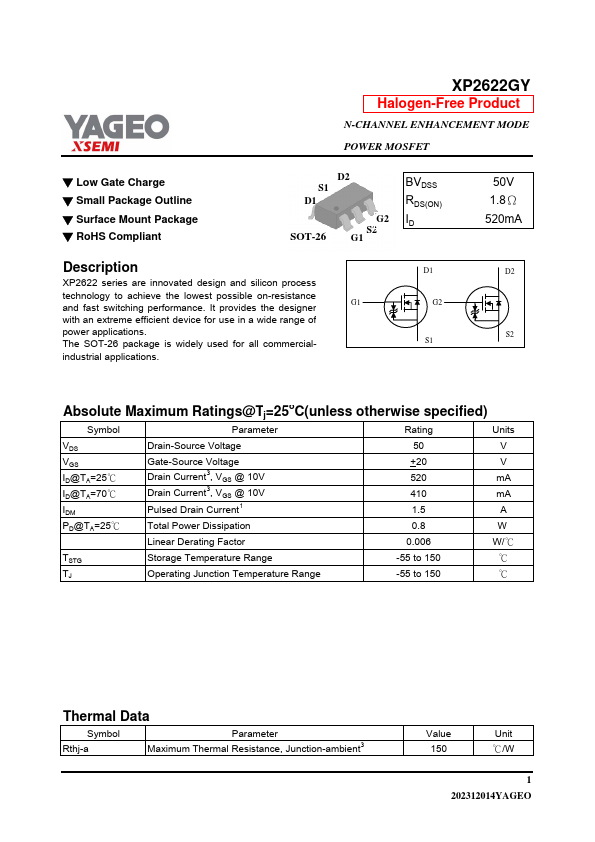

XP2622GY Datasheet Preview — Preview of XP2622GY PDF

Datasheet Details

Part number	XP2622GY
Manufacturer	YAGEO
File Size	228.16 KB
Description	N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet	XP2622GY-YAGEO.pdf

XP2622GY Product details

Description

D1 XP2622 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer G1 G2 with an extreme efficient device for use in a wide range of power applications.The SOT-26 package is widely used for all commercial- S1 industrial applications.50V 1.8Ω 520mA D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM
