XP2626GY N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP2626GY Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Smaller Outline Package ▼ Surface mount package ▼ .
XP2626 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

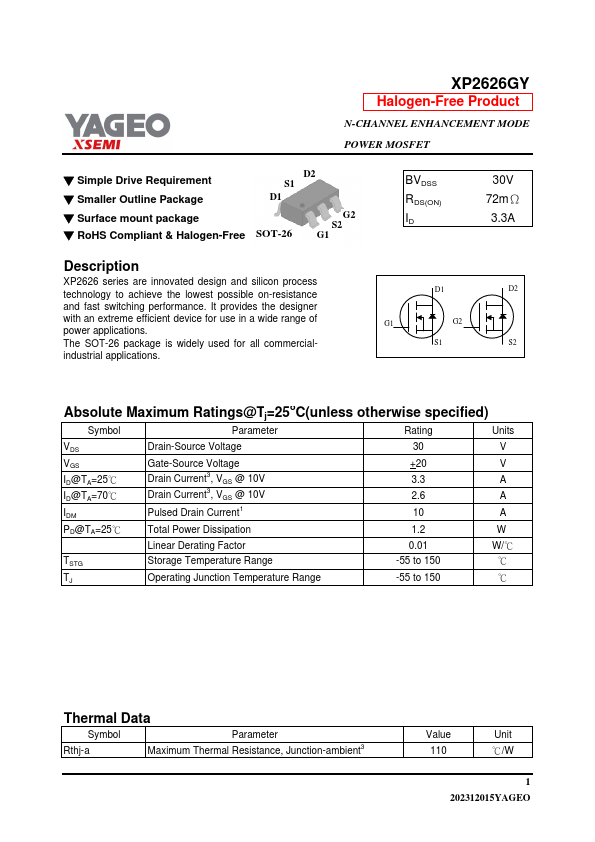

XP2626GY Datasheet Preview — Preview of XP2626GY PDF

Datasheet Specifications

Part number: XP2626GY
Manufacturer: YAGEO
File Size: 192.35 KB
Datasheet: XP2626GY-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-26 package is widely used for all commercialindustrial applications. D1 D2 G1 G2 S1 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ Drain-Source Voltage Gate-Source Voltage Drain Current3, V
