XP3N5R0M N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

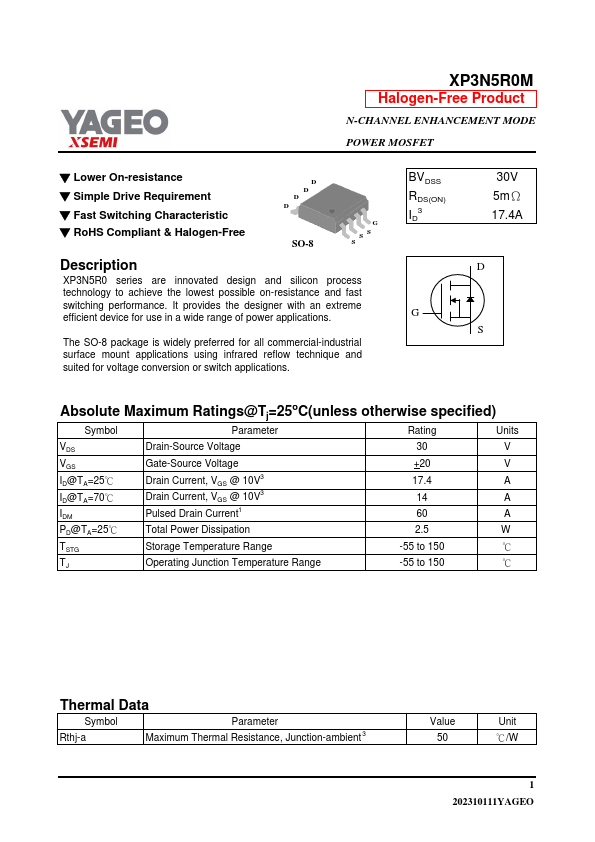

XP3N5R0M Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower On-resistance ▼ Simple Drive Requirement ▼ Fast Switching Characteristi.
XP3N5R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP3N5R0M Datasheet Preview — Preview of XP3N5R0M PDF

Datasheet Specifications

Part number: XP3N5R0M
Manufacturer: YAGEO
File Size: 207.36 KB
Datasheet: XP3N5R0M-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID3 G 30V 5mΩ 17.4A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Par
