XP3N5R0YT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3N5R0YT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Size & Ultra_Low RDS(ON) ▼ RoHS Compli.
XP3N5R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

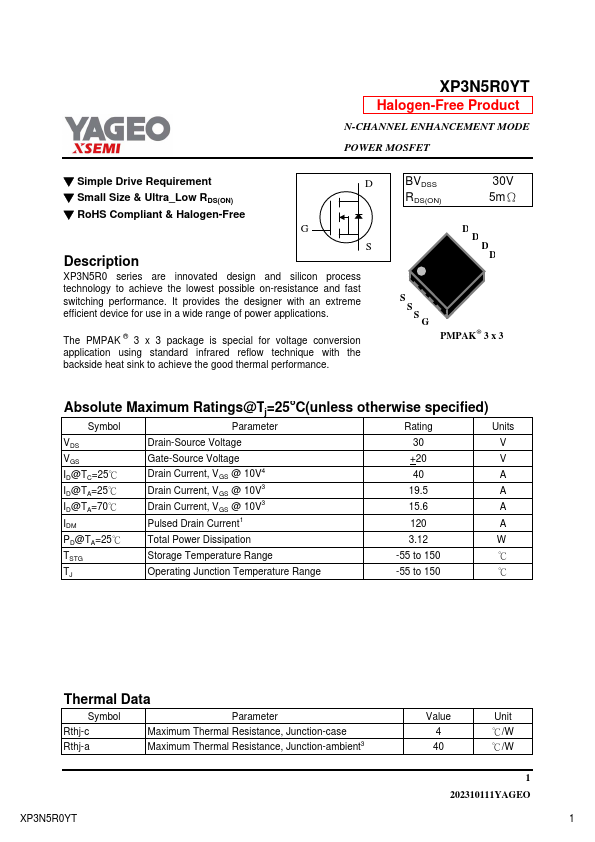

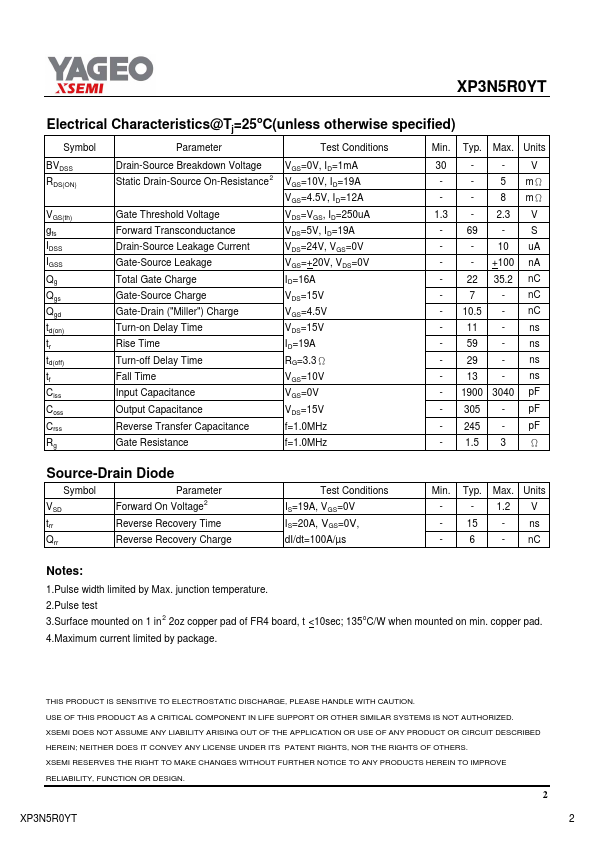

XP3N5R0YT Datasheet Preview — Preview of XP3N5R0YT PDF

Datasheet Specifications

Part number: XP3N5R0YT
Manufacturer: YAGEO
File Size: 246.51 KB
Datasheet: XP3N5R0YT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3 x 3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) 30V 5mΩ D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified
