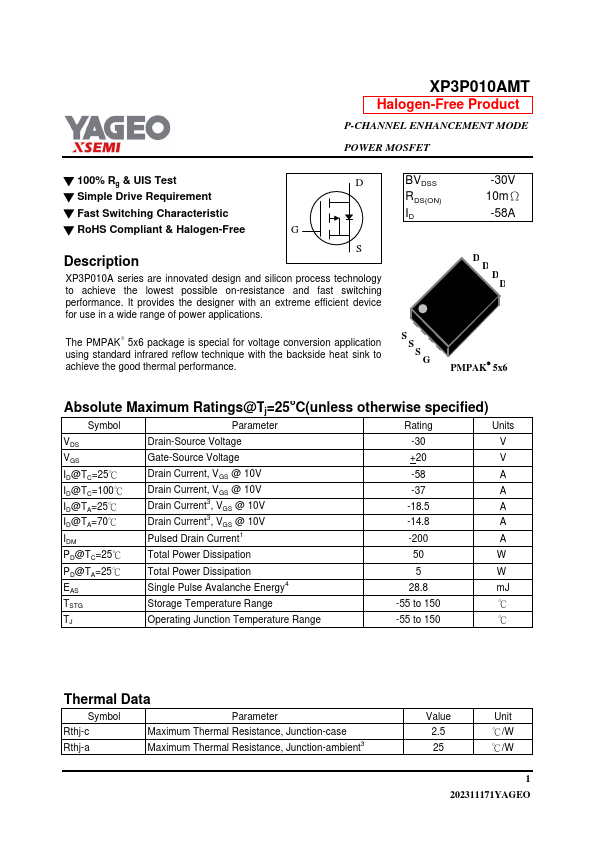

XP3P010AMT P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3P010AMT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Charact.
XP3P010A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP3P010AMT-YAGEO.pdf

XP3P010AMT Datasheet Preview — Preview of XP3P010AMT PDF

Datasheet Details

Part number:

XP3P010AMT

Manufacturer:

YAGEO

File Size:

323.56 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK® 5x6 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) ID -30V 10mΩ -58A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise spec
