XP3P010H P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3P010H Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP3P010 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

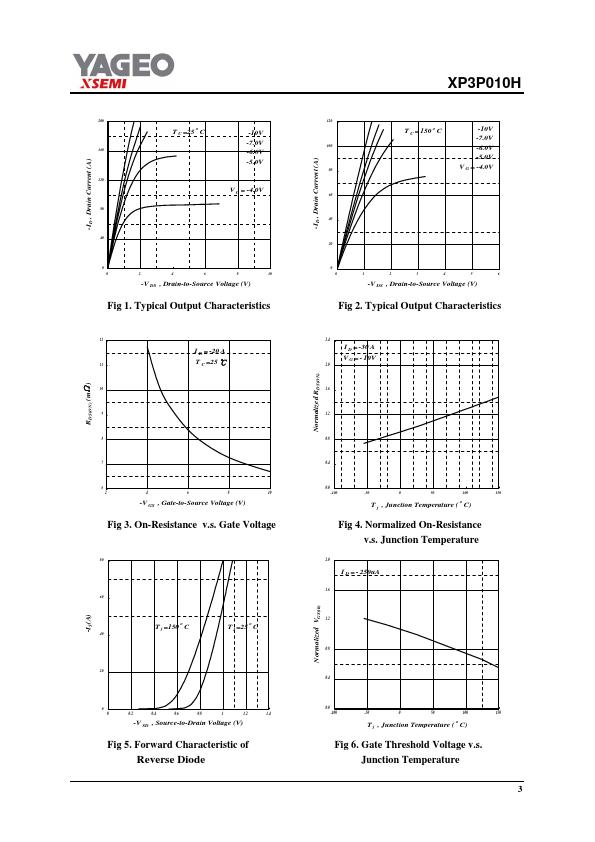

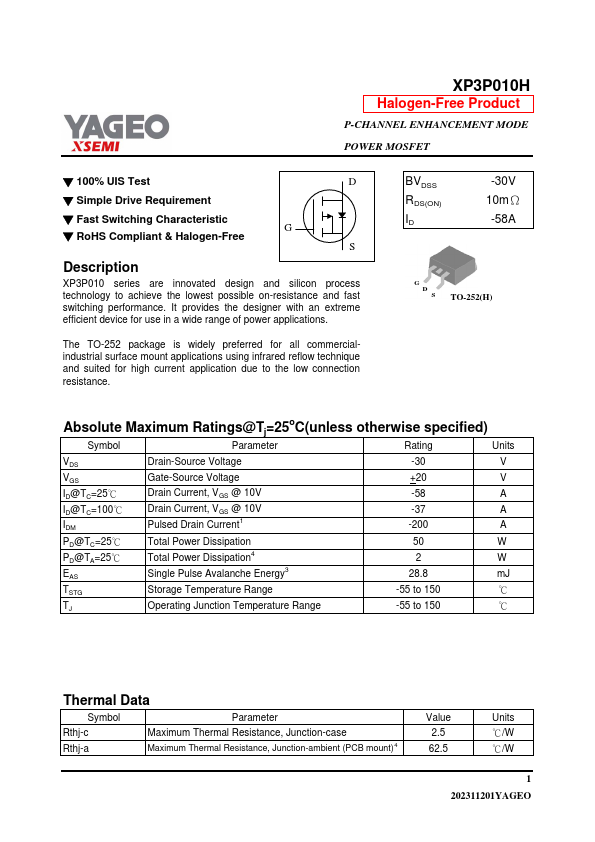

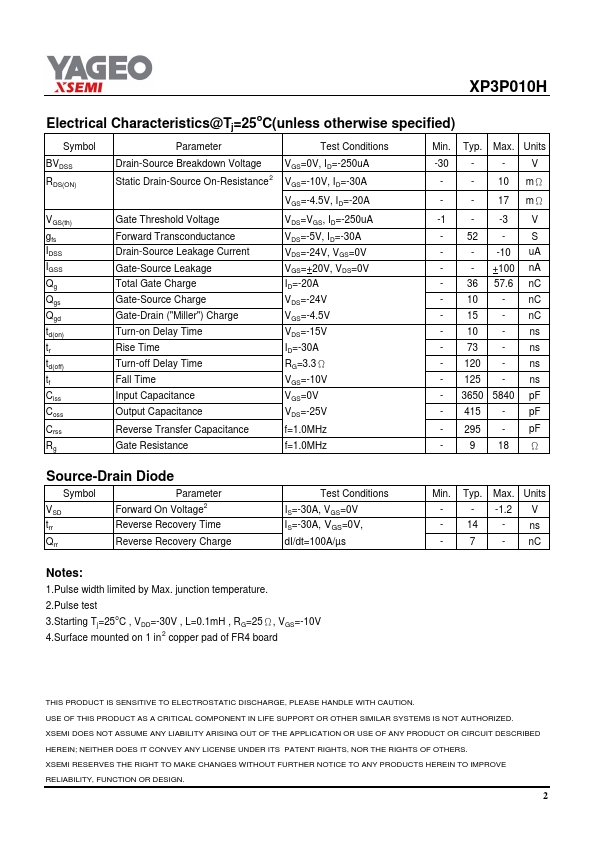

XP3P010H Datasheet Preview — Preview of XP3P010H PDF

Datasheet Specifications

Part number: XP3P010H
Manufacturer: YAGEO
File Size: 181.83 KB
Datasheet: XP3P010H-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -30V 10mΩ -58A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless
