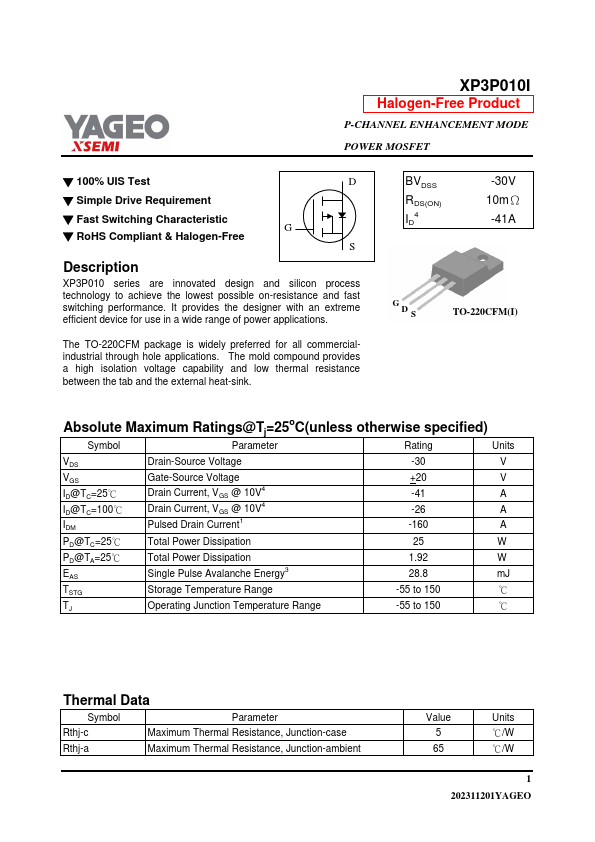

XP3P010I P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3P010I Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP3P010 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP3P010I-YAGEO.pdf

XP3P010I Datasheet Preview — Preview of XP3P010I PDF

Datasheet Details

Part number:

XP3P010I

Manufacturer:

YAGEO

File Size:

220.20 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID4 -30V 10mΩ -41A GD S TO-220CFM(I) Absolute M
