XP4062CMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4062CMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Ro.
XP4062C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

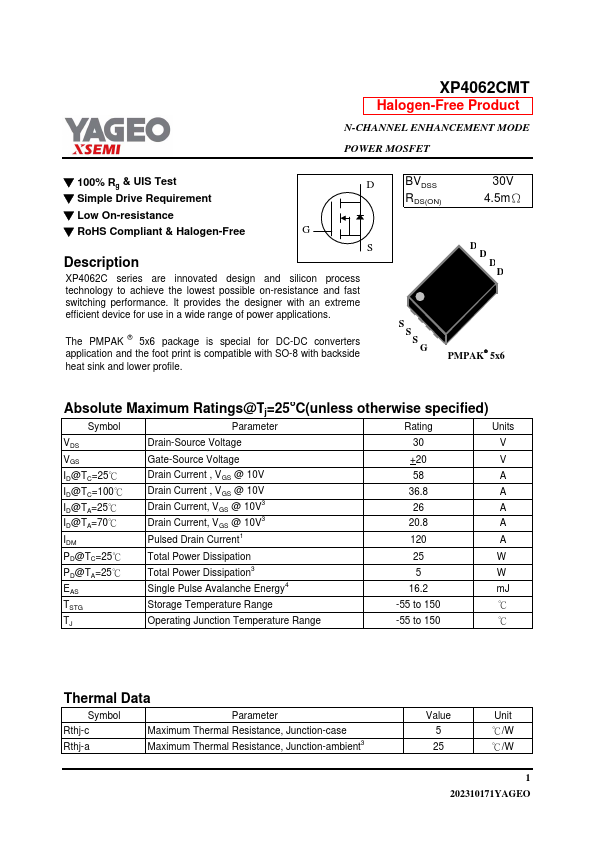

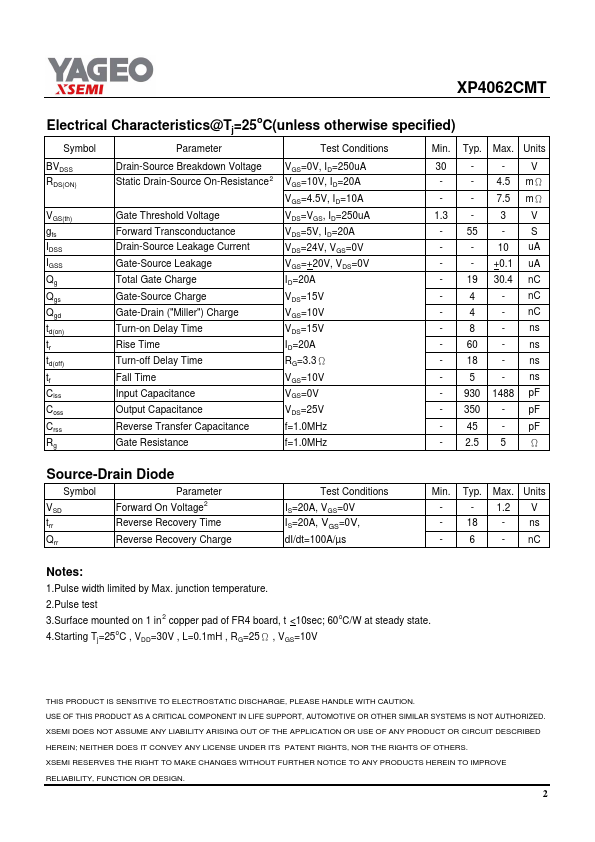

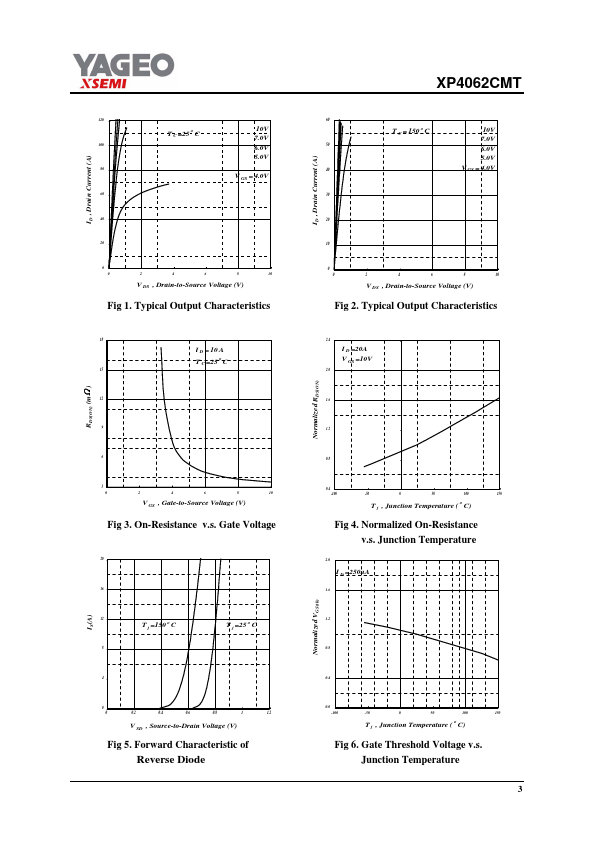

XP4062CMT Datasheet Preview — Preview of XP4062CMT PDF

Datasheet Specifications

Part number: XP4062CMT
Manufacturer: YAGEO
File Size: 322.85 KB
Datasheet: XP4062CMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 30V 4.5mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
