XP4024EYT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4024EYT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Small Size & Lower Profile ▼ RoHS Compliant & H.
XP4024 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

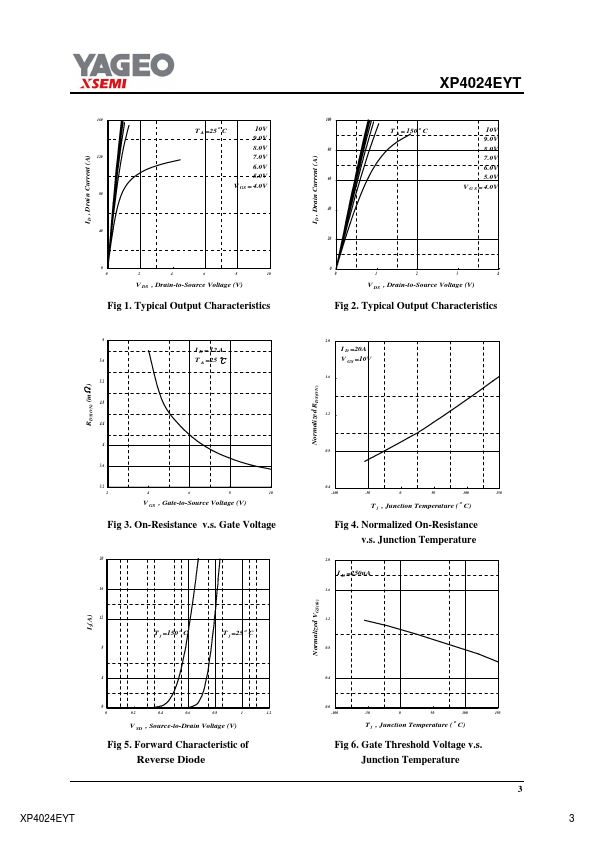

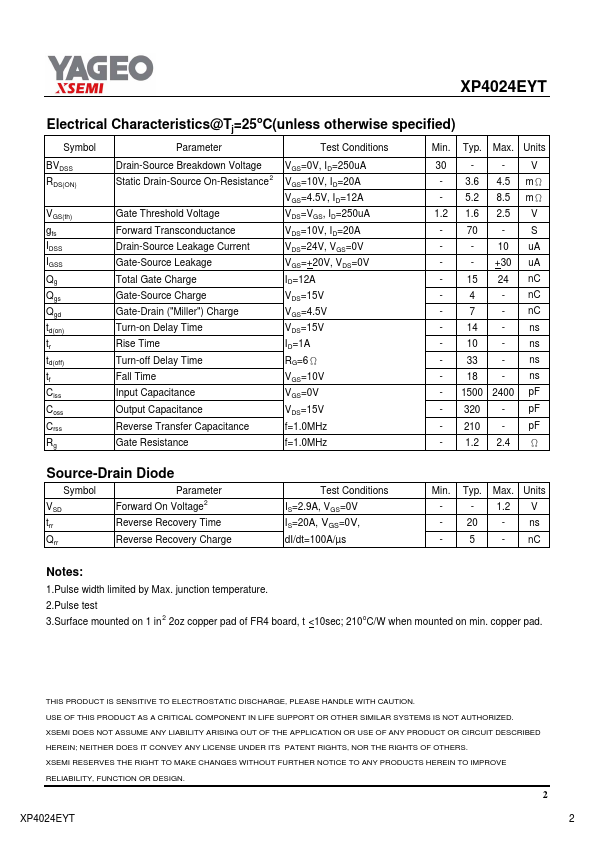

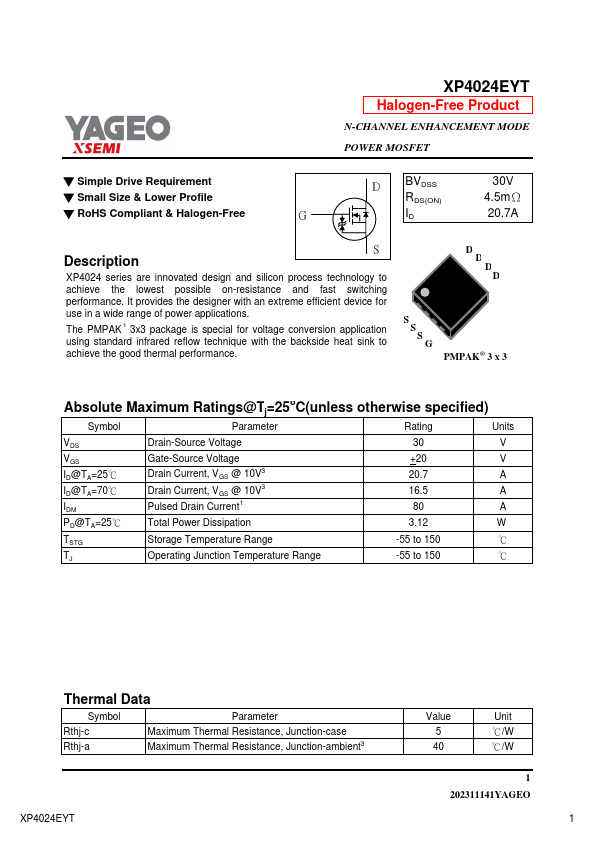

XP4024EYT Datasheet Preview — Preview of XP4024EYT PDF

Datasheet Specifications

Part number: XP4024EYT
Manufacturer: YAGEO
File Size: 248.58 KB
Datasheet: XP4024EYT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
