XP4028EYT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP4028EYT Description

XP4028EYT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Small Size & Lower Profile ▼ RoHS Compliant & H.
XP4028 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP4028EYT Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin

📥 Download Datasheet

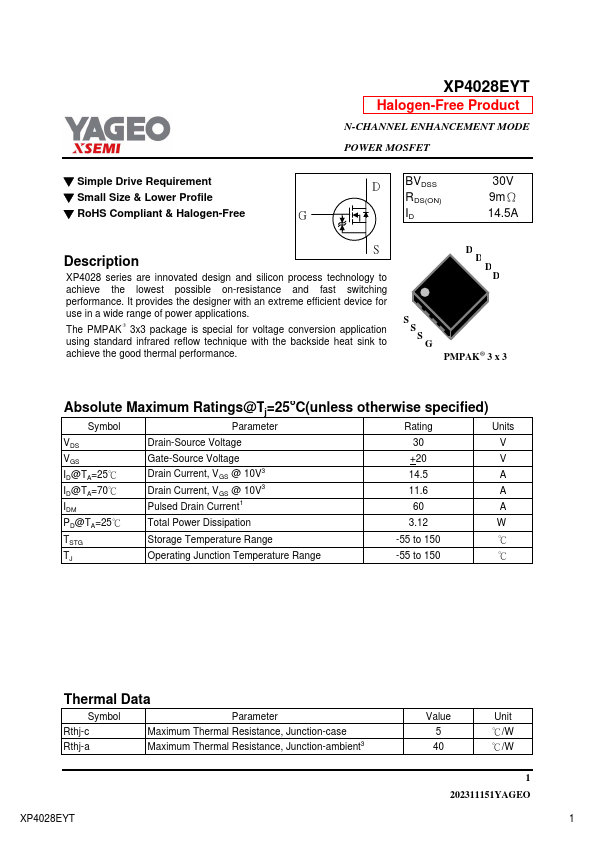

Preview of XP4028EYT PDF

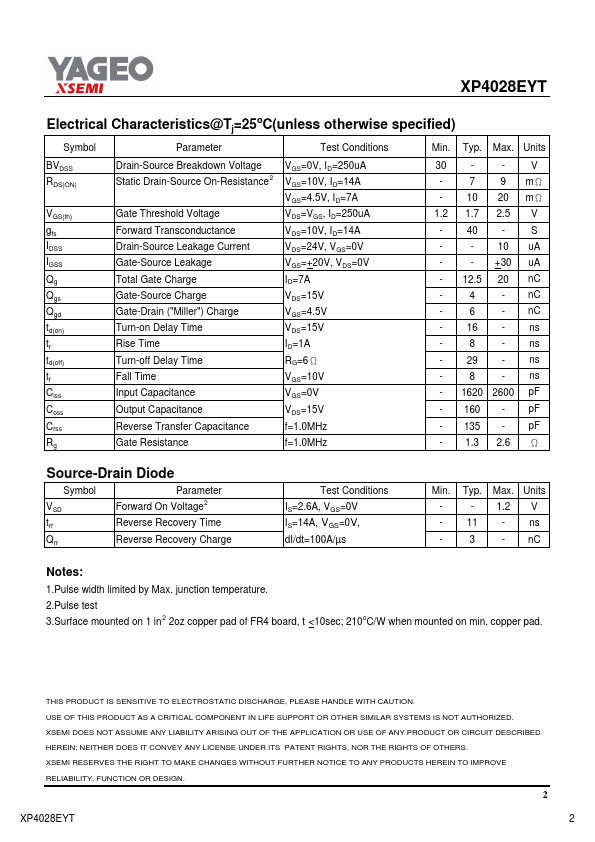

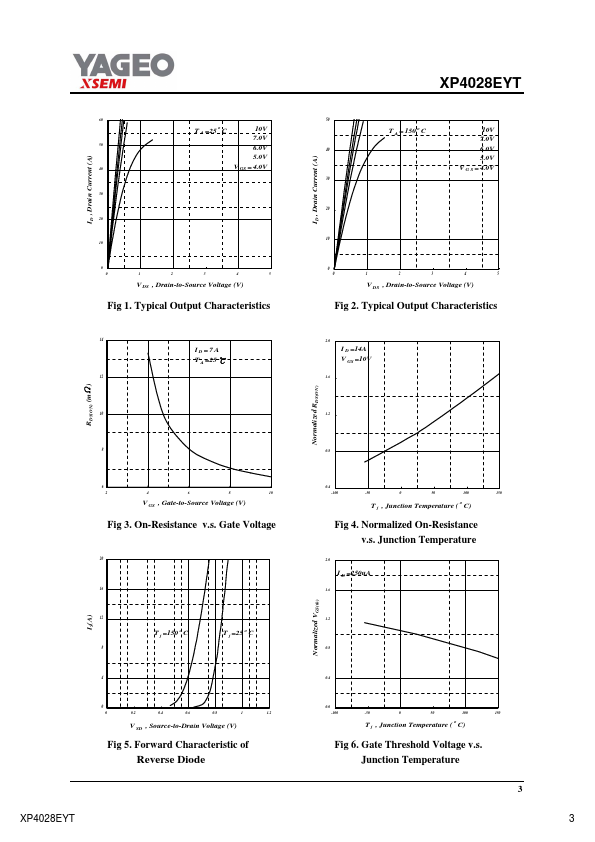

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP4028EYT
Manufacturer
YAGEO
File Size
247.88 KB
Datasheet
XP4028EYT-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
