XP4028EH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4028EH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characteri.
XP4028 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switch. ing performance.

📥 Download Datasheet

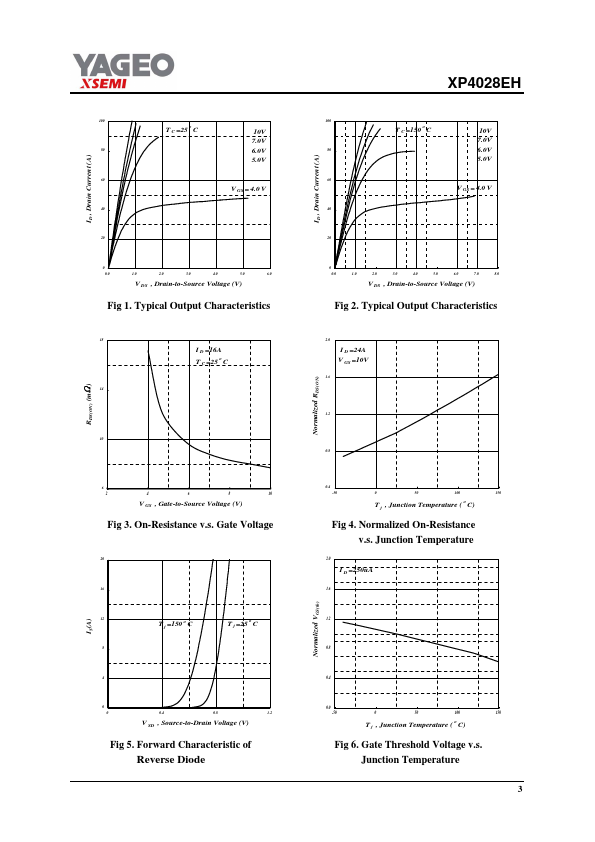

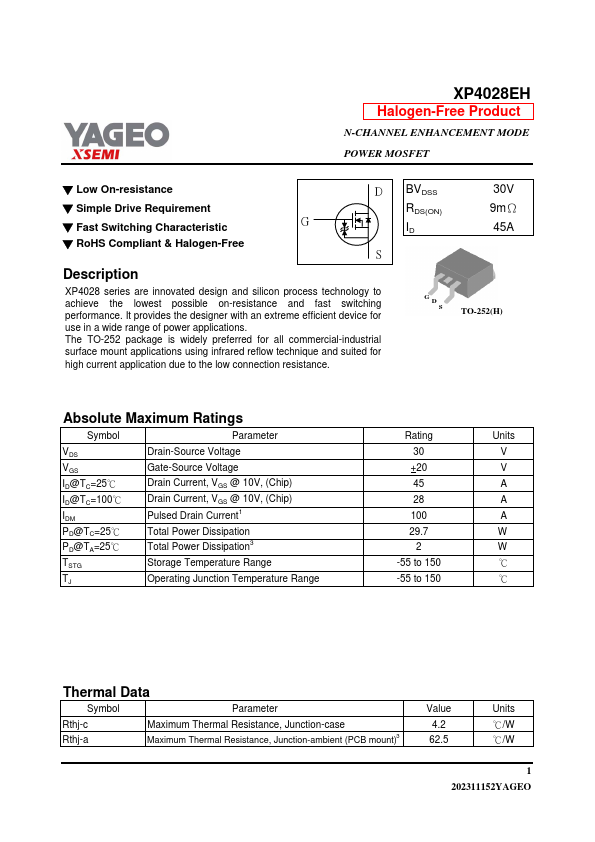

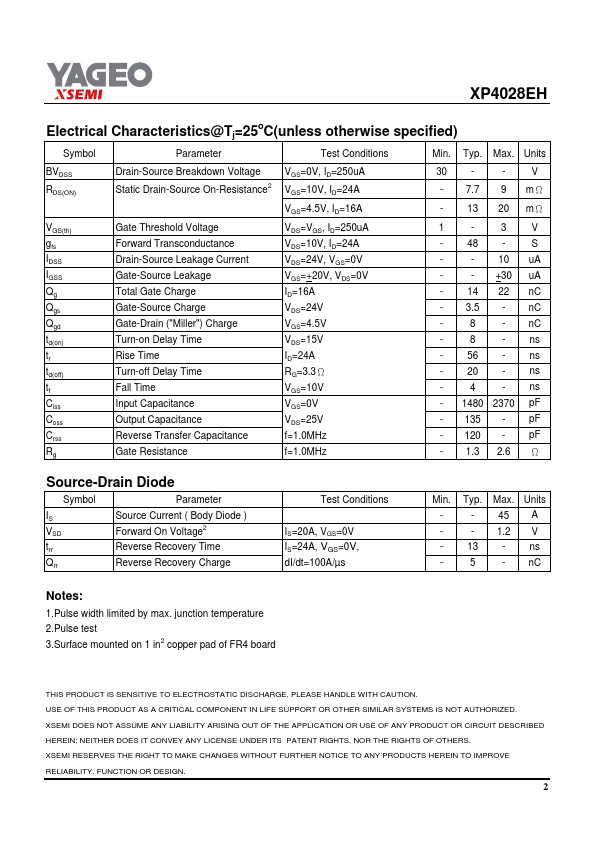

XP4028EH Datasheet Preview — Preview of XP4028EH PDF

Datasheet Specifications

Part number: XP4028EH
Manufacturer: YAGEO
File Size: 183.56 KB
Datasheet: XP4028EH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID 30V 9mΩ 45A G D S TO-252(H) Absolute Maximum Ratings Symbol Parameter
