XP4028GEMT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP4028GEMT Description

XP4028GEMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ SO-8 Compatible with Heatsink ▼ Low On-resi.
XP4028 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP4028GEMT Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID 30V 9mΩ 41.6A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter R

📥 Download Datasheet

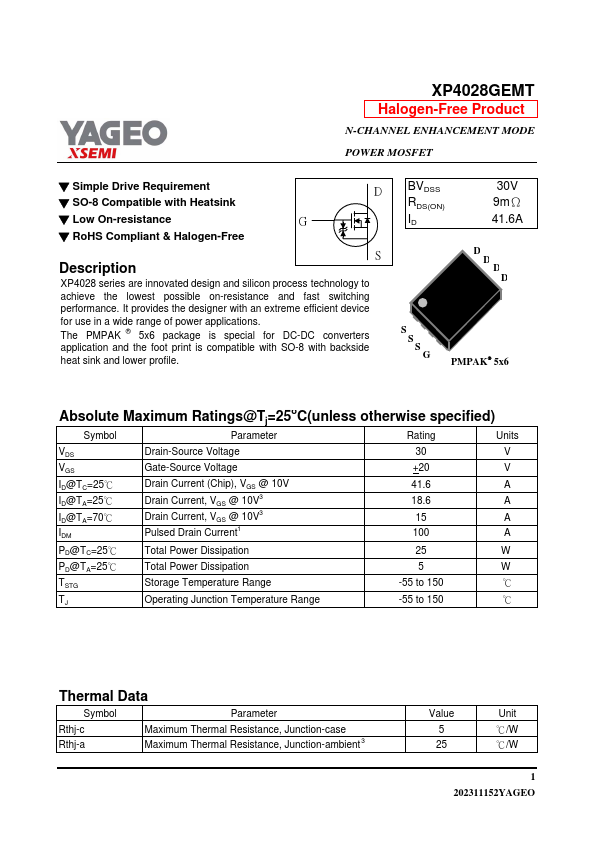

Preview of XP4028GEMT PDF

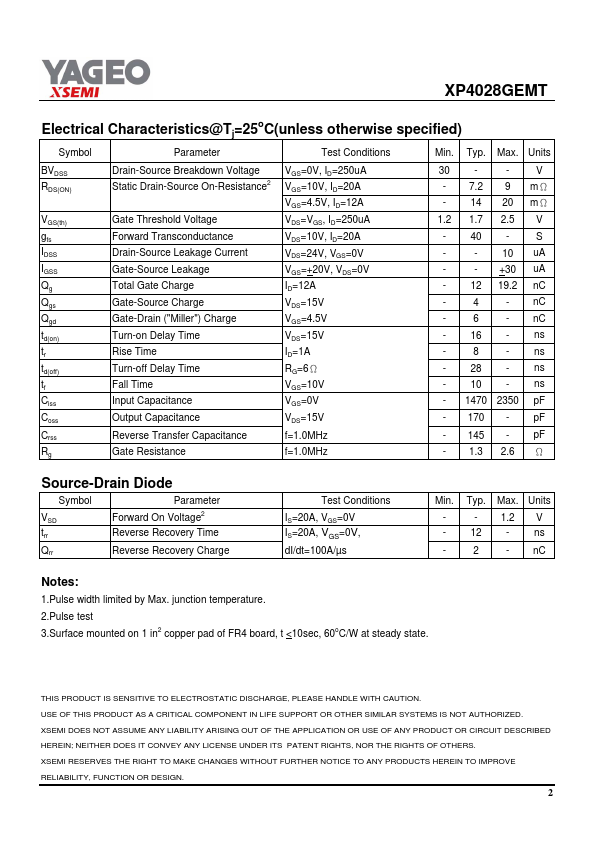

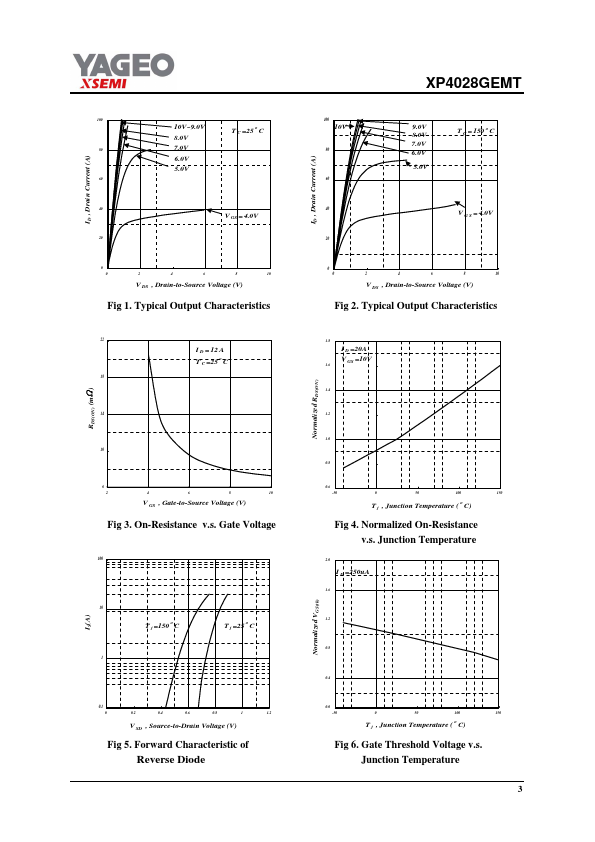

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP4028GEMT
Manufacturer
YAGEO
File Size
324.88 KB
Datasheet
XP4028GEMT-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
