XP4024GEMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4024GEMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ SO-8 Compatible with Heatsink ▼ Low On-resi.
XP4024 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

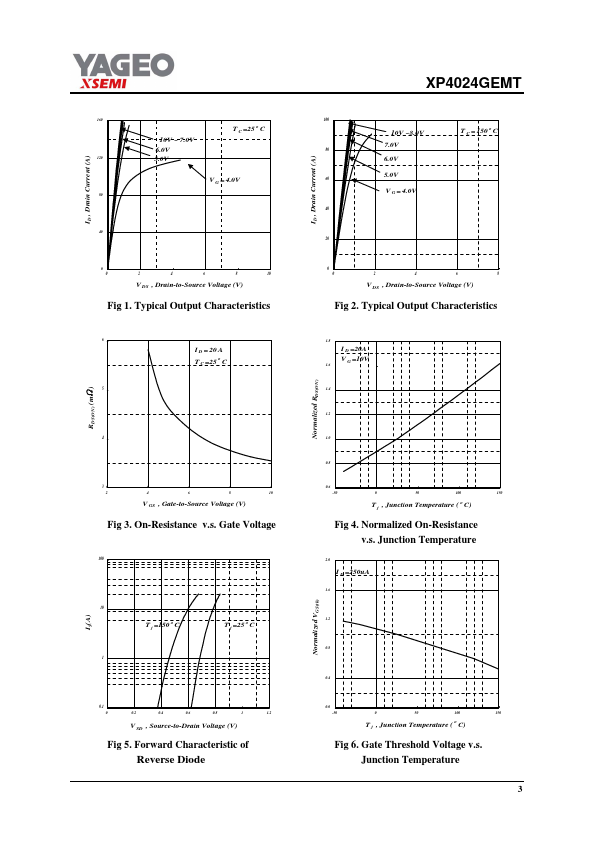

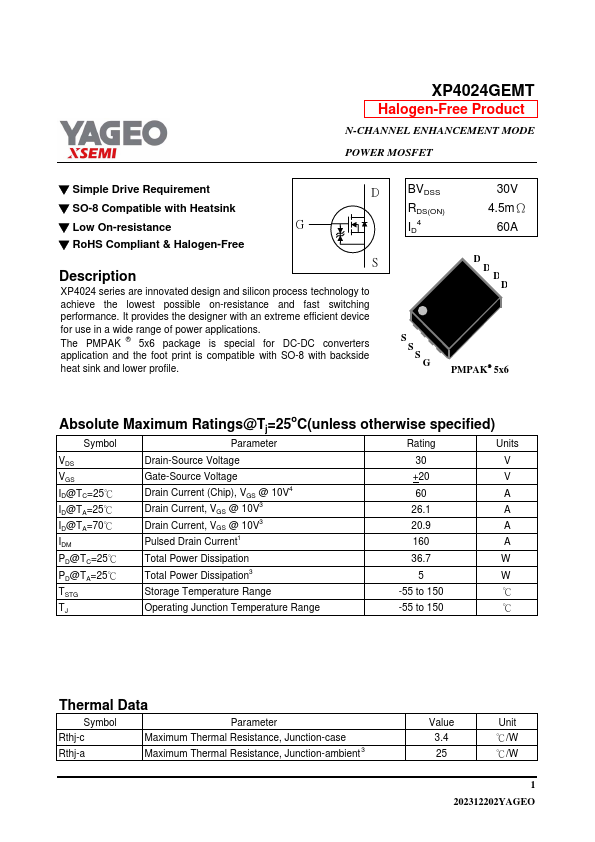

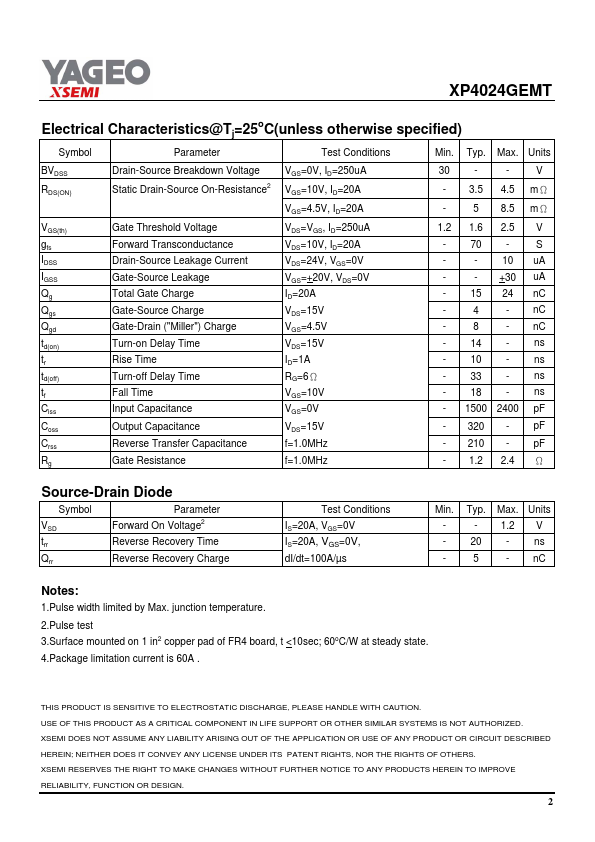

XP4024GEMT Datasheet Preview — Preview of XP4024GEMT PDF

Datasheet Specifications

Part number: XP4024GEMT
Manufacturer: YAGEO
File Size: 325.88 KB
Datasheet: XP4024GEMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID4 30V 4.5mΩ 60A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
