XP60AN1K1IN N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60AN1K1IN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP60AN1K1 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

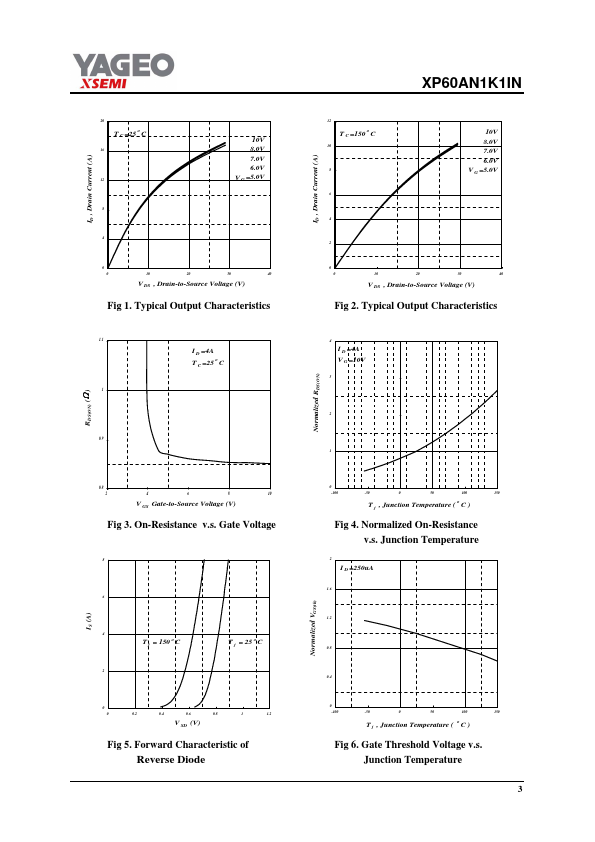

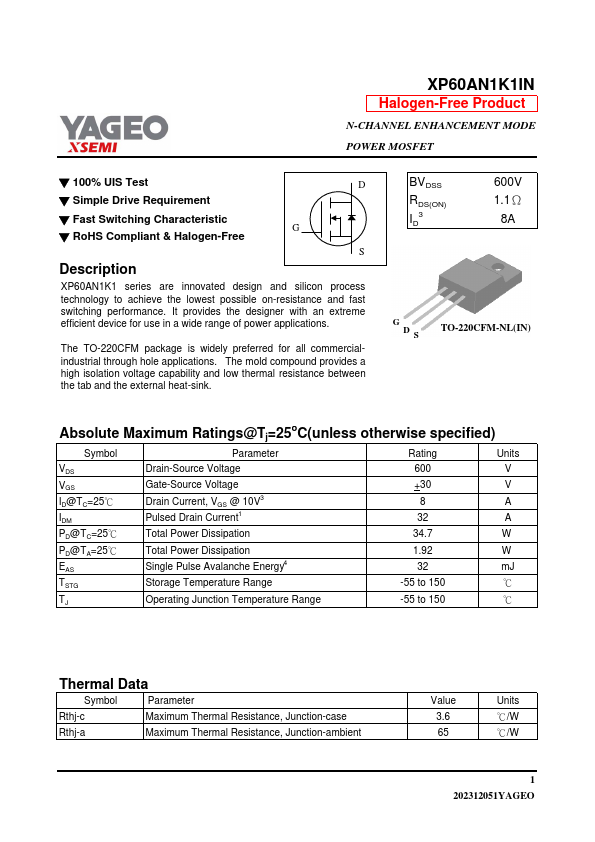

XP60AN1K1IN Datasheet Preview — Preview of XP60AN1K1IN PDF

Datasheet Specifications

Part number: XP60AN1K1IN
Manufacturer: YAGEO
File Size: 197.40 KB
Datasheet: XP60AN1K1IN-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 600V 1.1Ω 8A G DS TO-220CFM-NL(IN) Absolute
