XP60SA125DDT8 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SA125DDT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test Pin 5 Drain ▼ Low trr / Qrr ▼ Simple Drive Require.
Pin 3,4 Power Source XP60SA125D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast swi.

📥 Download Datasheet

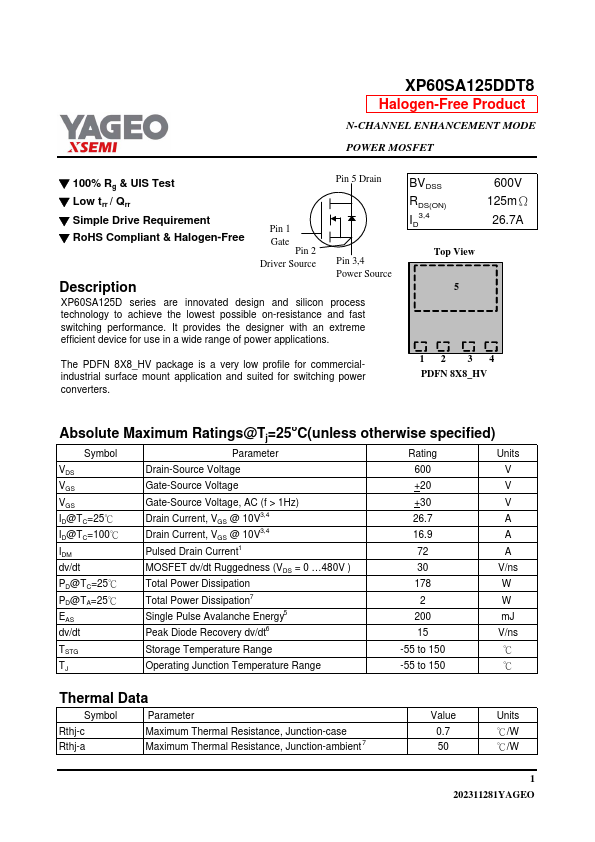

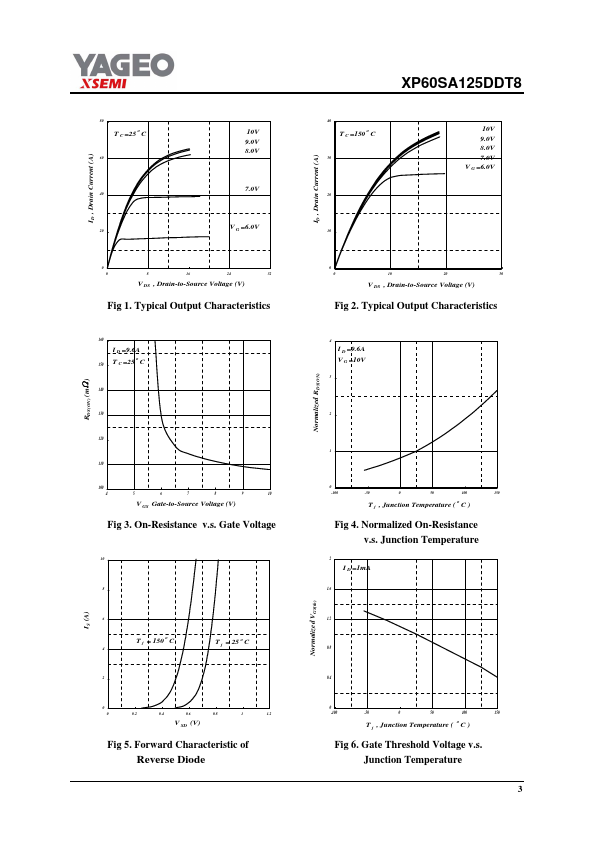

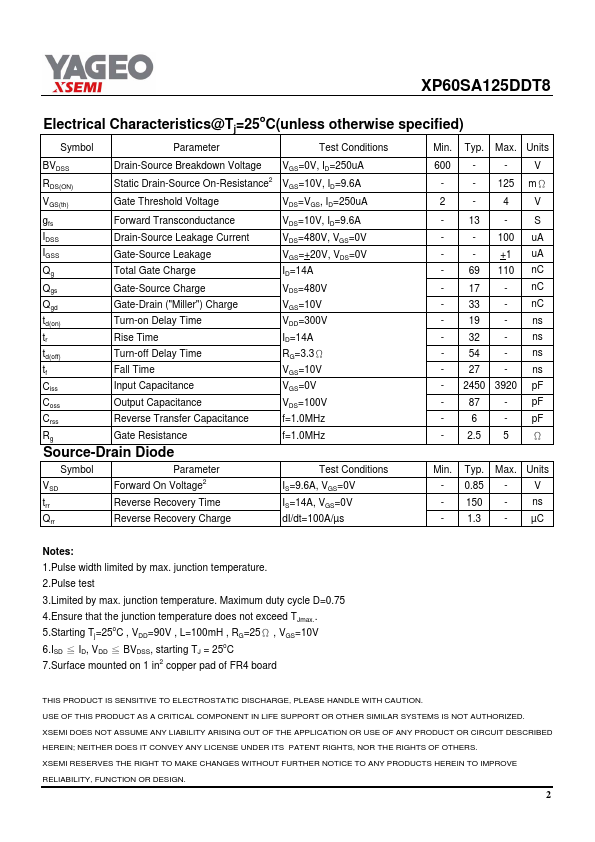

XP60SA125DDT8 Datasheet Preview — Preview of XP60SA125DDT8 PDF

Datasheet Specifications

Part number: XP60SA125DDT8
Manufacturer: YAGEO
File Size: 167.88 KB
Datasheet: XP60SA125DDT8-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. BVDSS RDS(ON) ID3,4 600V 125mΩ 26.7A Top View 5 12 34 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
