XP60SA290DP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SA290DP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP60SA290D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

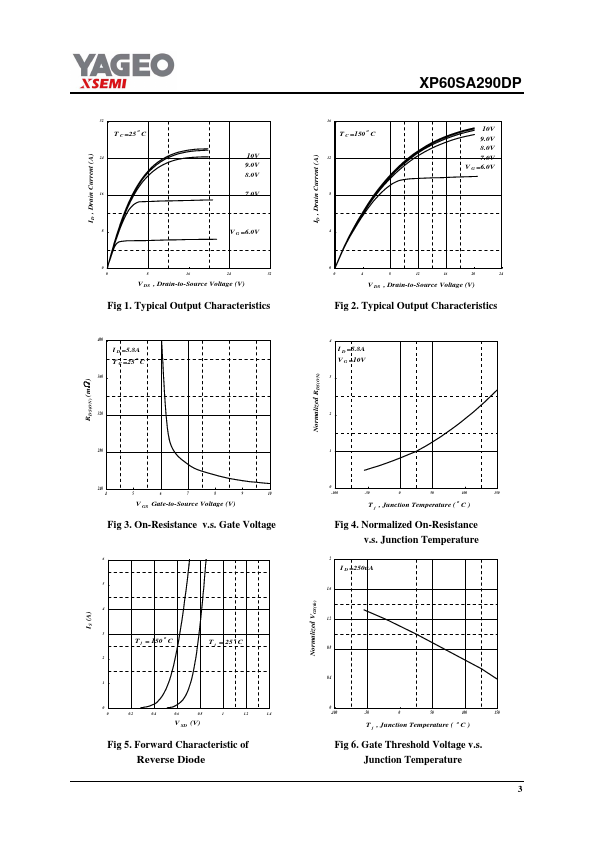

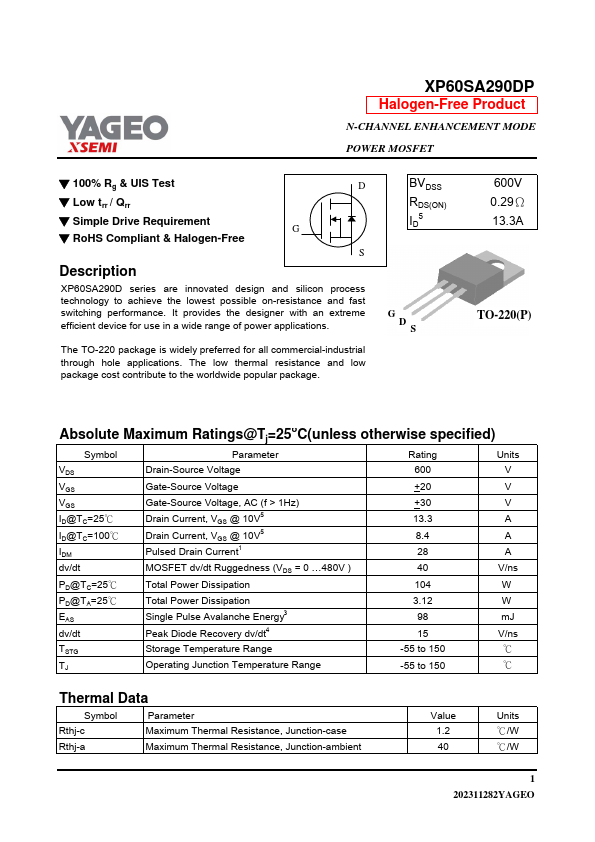

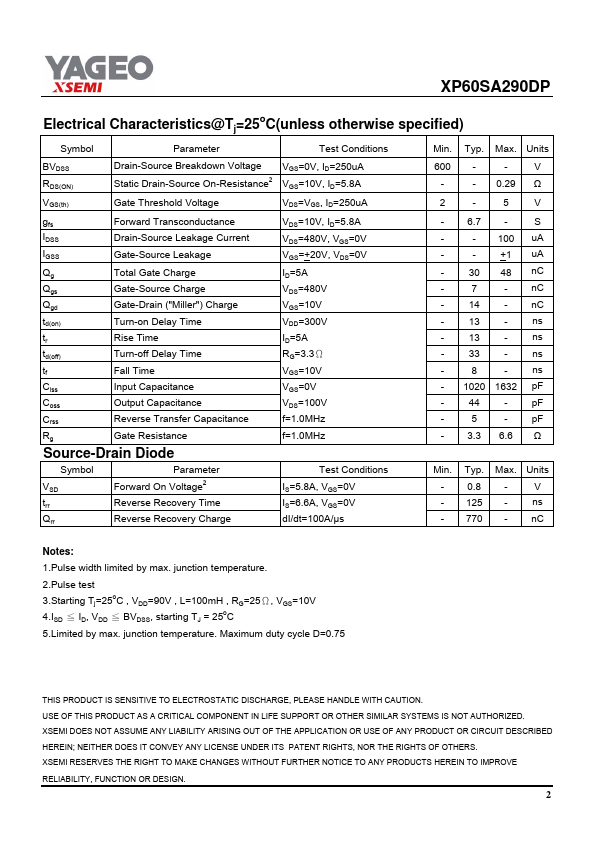

XP60SA290DP Datasheet Preview — Preview of XP60SA290DP PDF

Datasheet Specifications

Part number: XP60SA290DP
Manufacturer: YAGEO
File Size: 188.70 KB
Datasheet: XP60SA290DP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID5 G D S 600V 0.29Ω 13.3A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise speci
