XP60SA400ADH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SA400ADH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ Ro.
XP60SA400AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

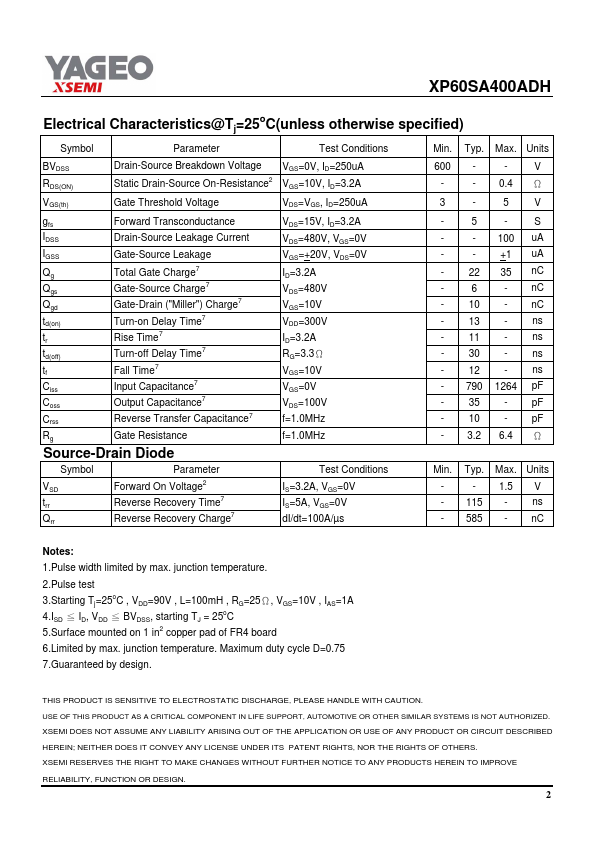

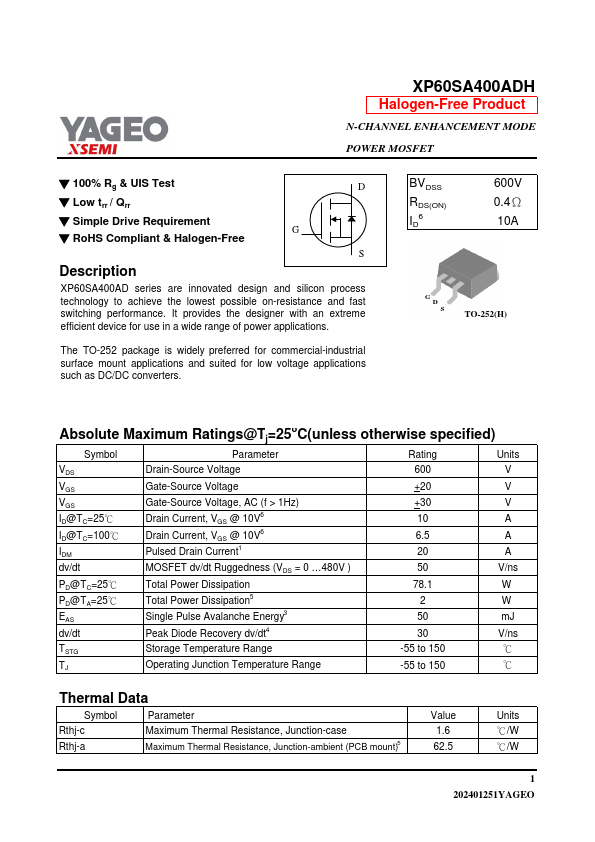

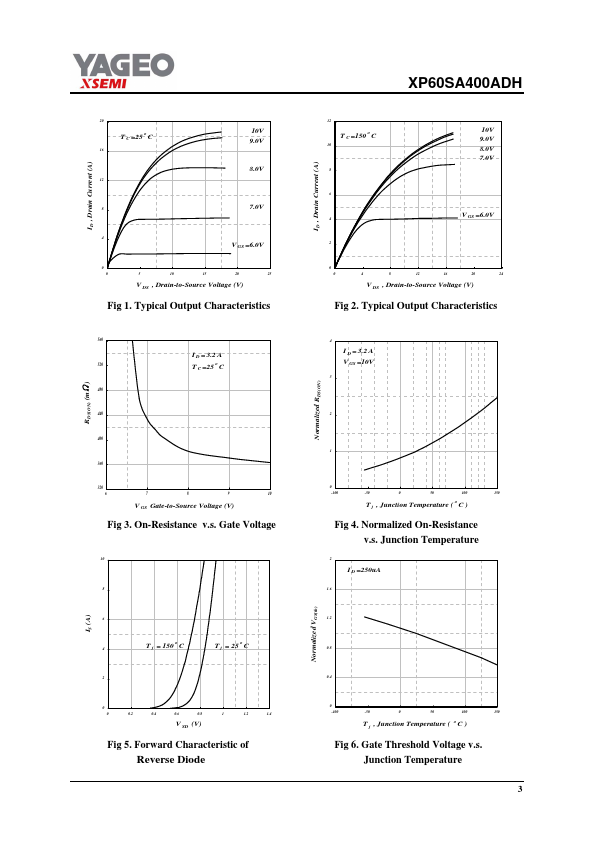

XP60SA400ADH Datasheet Preview — Preview of XP60SA400ADH PDF

Datasheet Specifications

Part number: XP60SA400ADH
Manufacturer: YAGEO
File Size: 177.40 KB
Datasheet: XP60SA400ADH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID6 600V 0.4Ω 10A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
