XP60SC180DP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC180DP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoHS Com.
XP60SC180D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

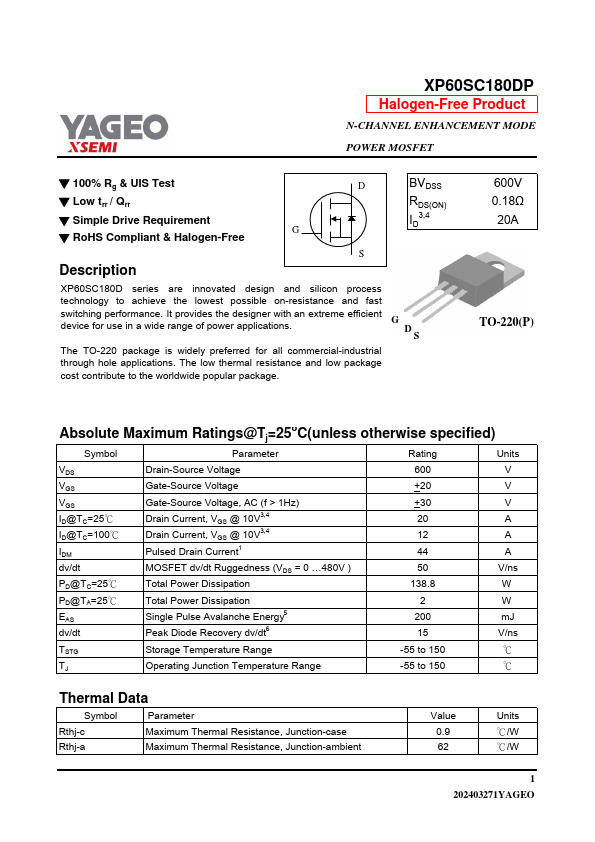

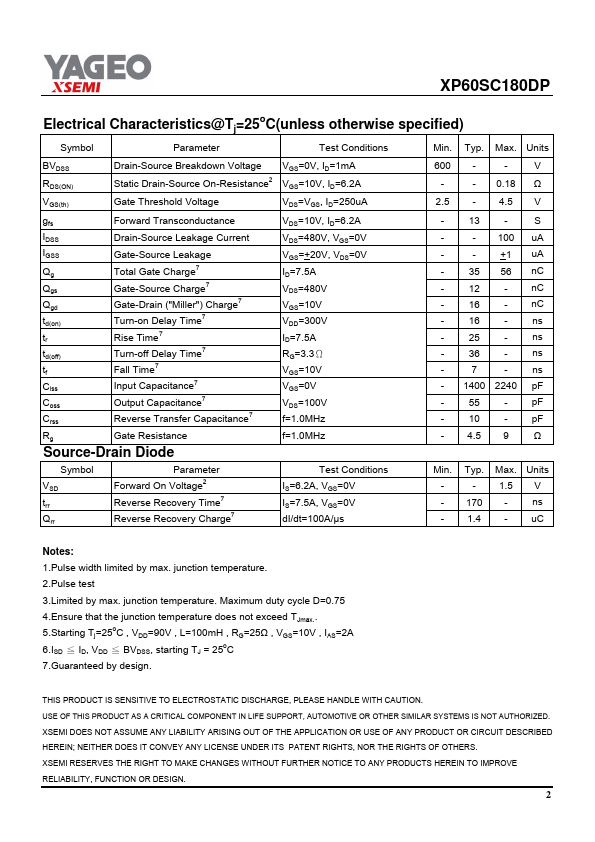

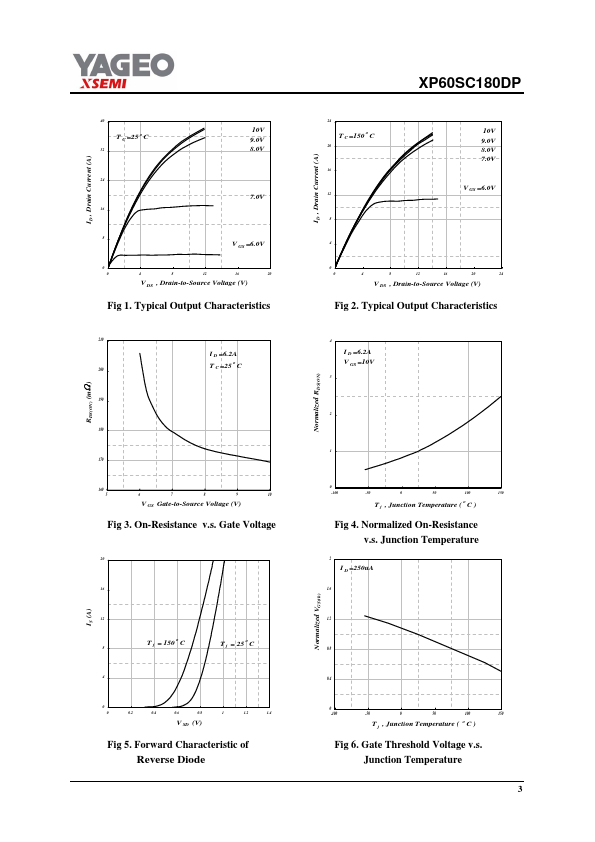

XP60SC180DP Datasheet Preview — Preview of XP60SC180DP PDF

Datasheet Specifications

Part number: XP60SC180DP
Manufacturer: YAGEO
File Size: 189.65 KB
Datasheet: XP60SC180DP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. G D S 600V 0.18Ω 20A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parame
