XP60SC120DR N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC120DR Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoHS Com.
XP60SC120D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

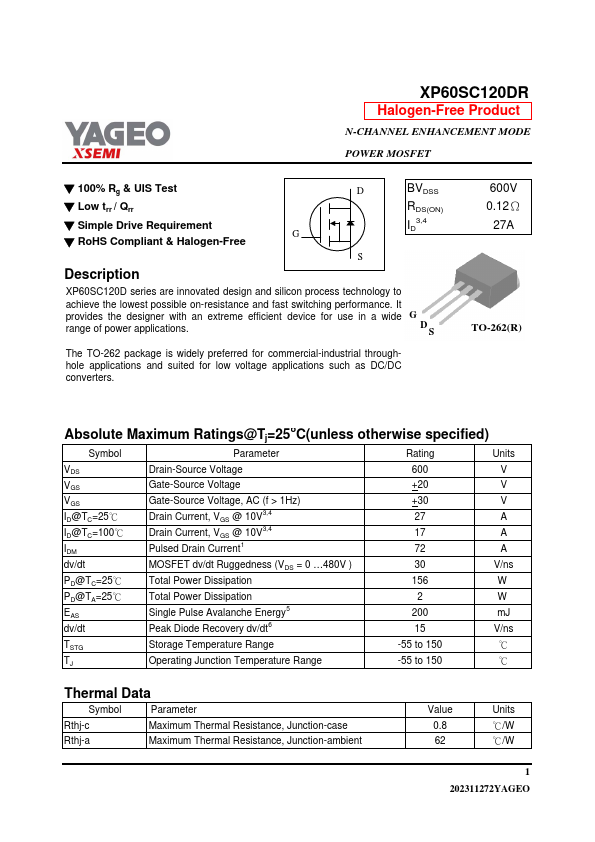

XP60SC120DR Datasheet Preview — Preview of XP60SC120DR PDF

Datasheet Specifications

Part number: XP60SC120DR
Manufacturer: YAGEO
File Size: 152.89 KB
Datasheet: XP60SC120DR-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* D S The TO-262 package is widely preferred for commercial-industrial throughhole applications and suited for low voltage applications such as DC/DC converters. 600V 0.12Ω 27A TO-262(R) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Sou
