XP60SC125DDT8 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC125DDT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Low trr / Qrr ▼ Simple Drive Requirement ▼ RoHS Com.
Pin 5 Drain Pin 3,4 Power Source XP60SC125D series are innovated design and silicon process technology to achieve the lowest possible on-resistance.

📥 Download Datasheet

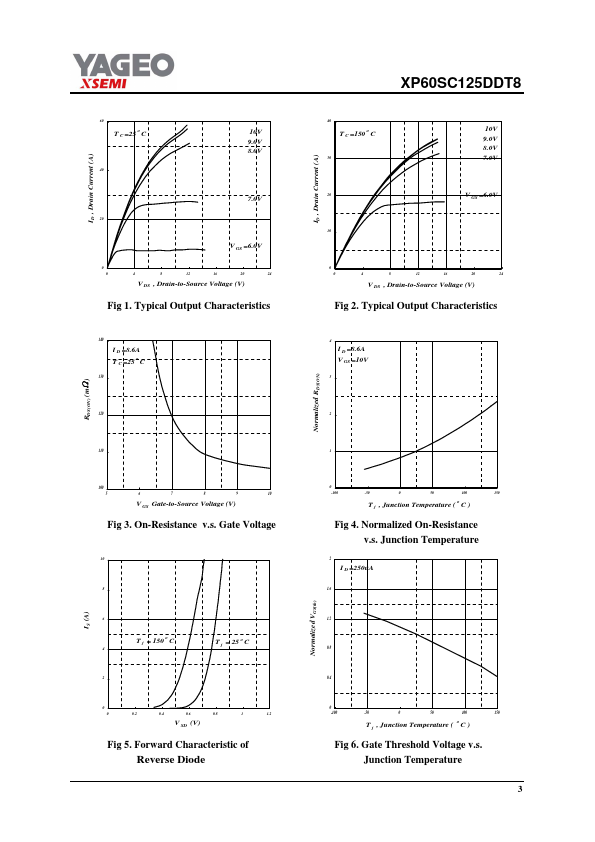

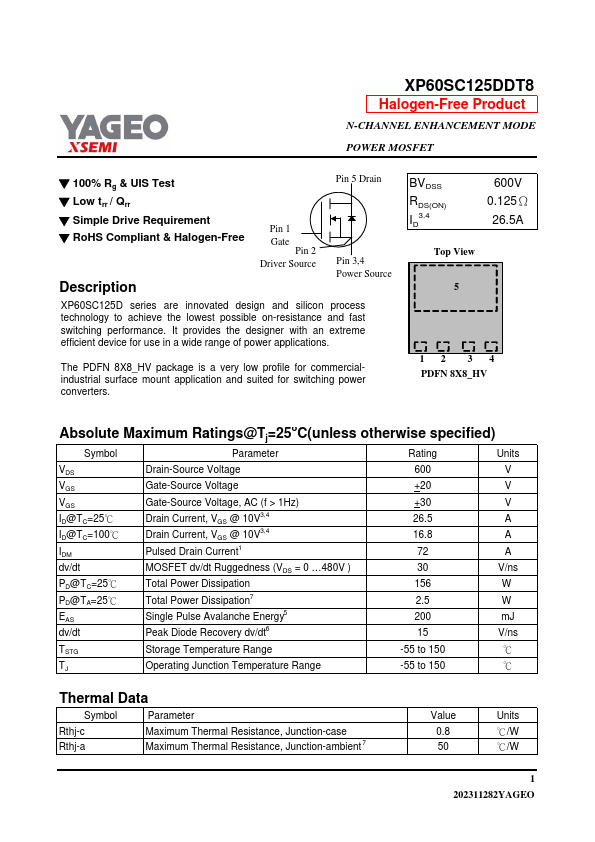

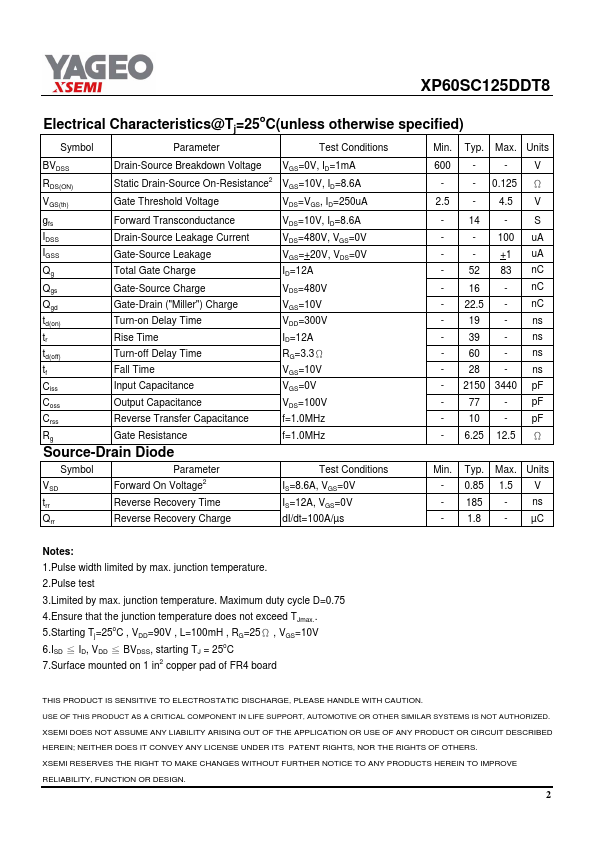

XP60SC125DDT8 Datasheet Preview — Preview of XP60SC125DDT8 PDF

Datasheet Specifications

Part number: XP60SC125DDT8
Manufacturer: YAGEO
File Size: 166.46 KB
Datasheet: XP60SC125DDT8-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. BVDSS RDS(ON) ID3,4 600V 0.125Ω 26.5A Top View 5 12 34 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rati
