XP60SL115DI N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SL115DI Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP60SL115D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

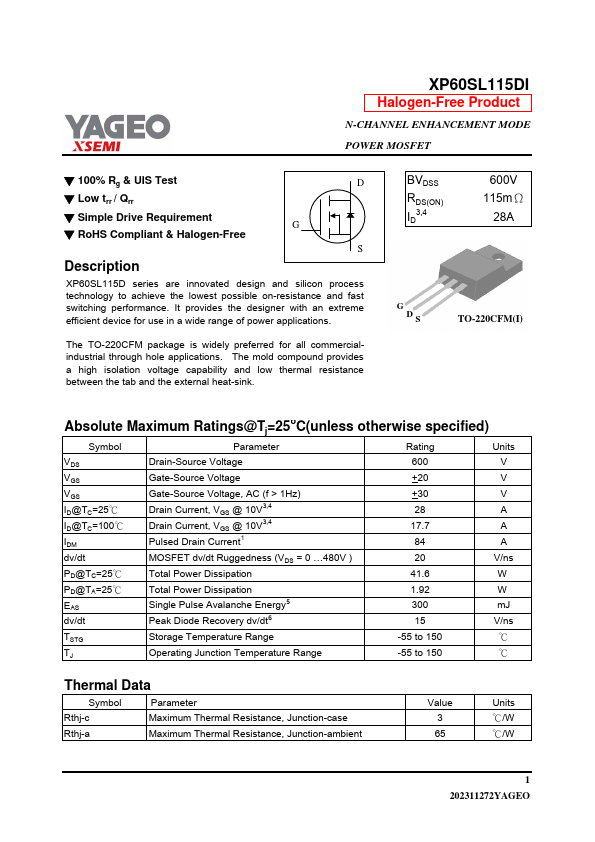

XP60SL115DI Datasheet Preview — Preview of XP60SL115DI PDF

Datasheet Specifications

Part number: XP60SL115DI
Manufacturer: YAGEO
File Size: 253.64 KB
Datasheet: XP60SL115DI-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,4 600V 115mΩ 28A G DS TO-220CFM(I) Absolute
