XP60SL160DP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

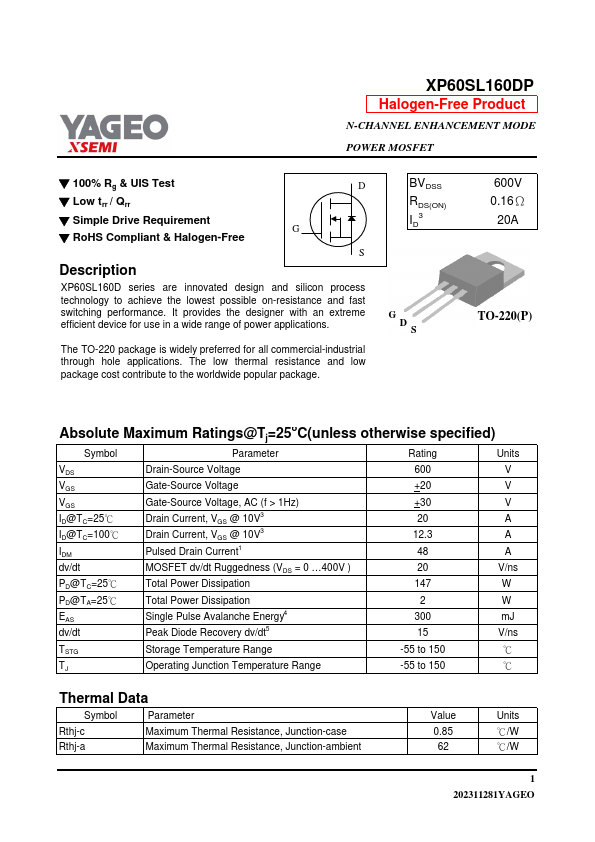

XP60SL160DP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP60SL160D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP60SL160DP Datasheet Preview — Preview of XP60SL160DP PDF

Datasheet Specifications

Part number: XP60SL160DP
Manufacturer: YAGEO
File Size: 151.73 KB
Datasheet: XP60SL160DP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID3 G D S 600V 0.16Ω 20A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specifi
