XP65SA210DDT8 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SA210DDT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test Pin 5 Drain ▼ Low trr / Qrr ▼ Simple Drive Require.
Pin 1 Gate Pin 2 Driver Source Pin 3,4 Power Source XP65SA210D series are innovated design and silicon process technology to achieve the lowest pos.

📥 Download Datasheet

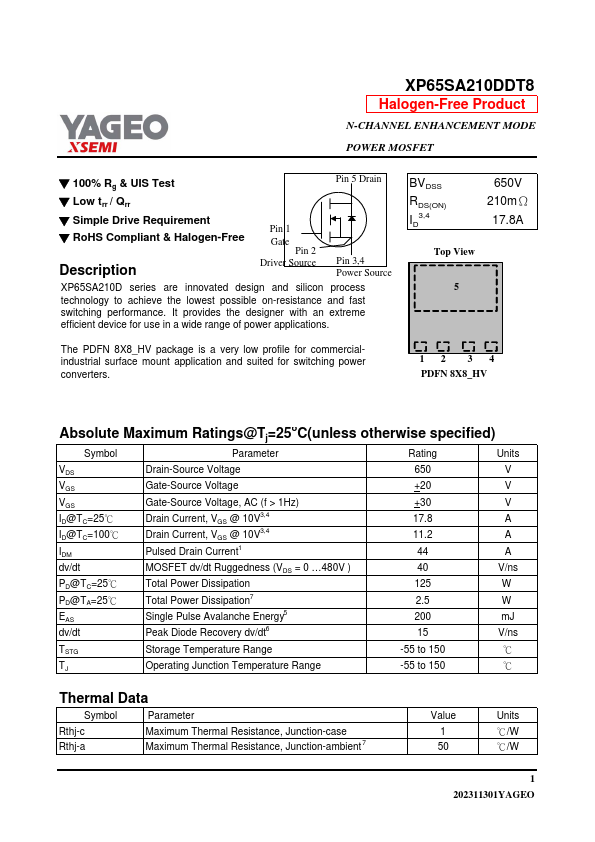

XP65SA210DDT8 Datasheet Preview — Preview of XP65SA210DDT8 PDF

Datasheet Specifications

Part number: XP65SA210DDT8
Manufacturer: YAGEO
File Size: 167.63 KB
Datasheet: XP65SA210DDT8-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID3,4 650V 210mΩ 17.8A Top View 5 The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. 12 34 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
