XP6NA8R0CST N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA8R0CST Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼ .
XP6NA8R0C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

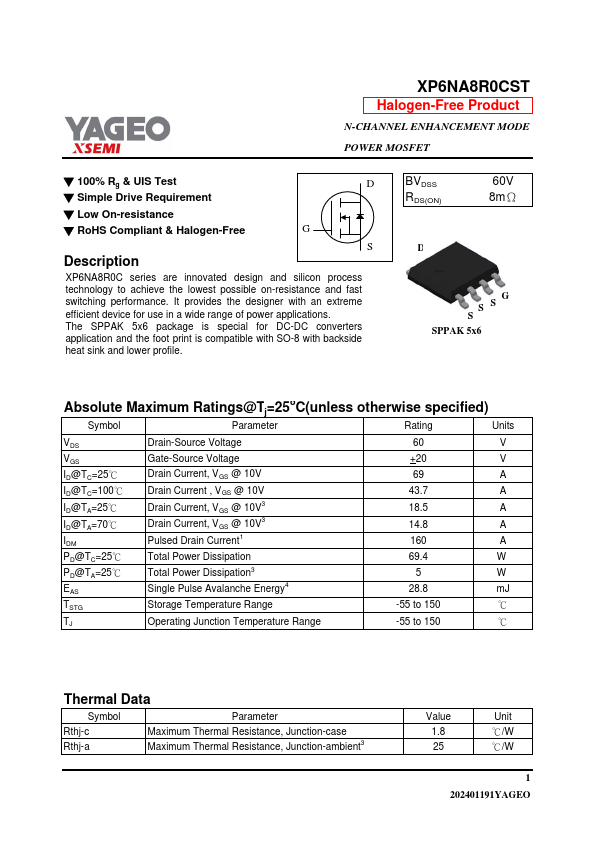

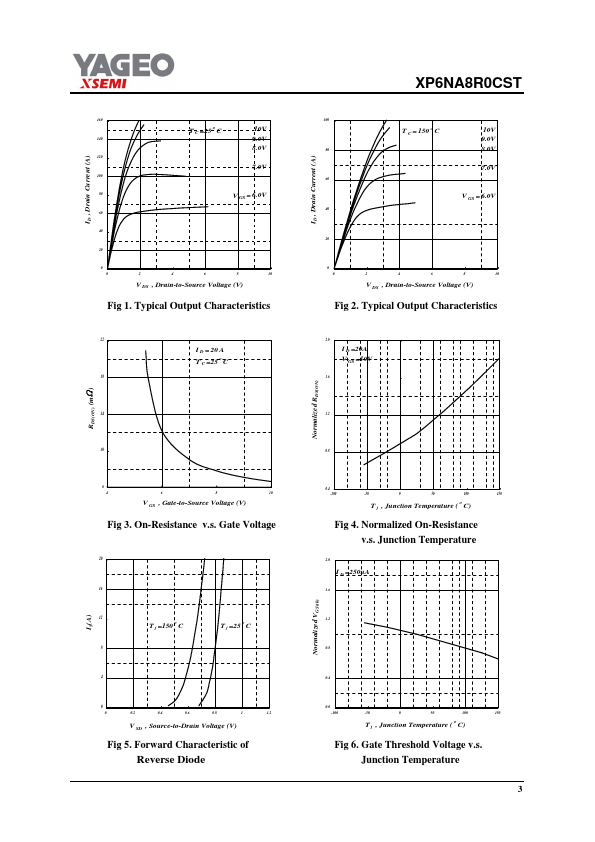

XP6NA8R0CST Datasheet Preview — Preview of XP6NA8R0CST PDF

Datasheet Specifications

Part number: XP6NA8R0CST
Manufacturer: YAGEO
File Size: 205.48 KB
Datasheet: XP6NA8R0CST-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SPPAK 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 60V 8mΩ D S SG S SPPAK 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS V
