XP6P250K P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6P250K Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Characteristic .
XP6P250 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast G switching performance.

📥 Download Datasheet

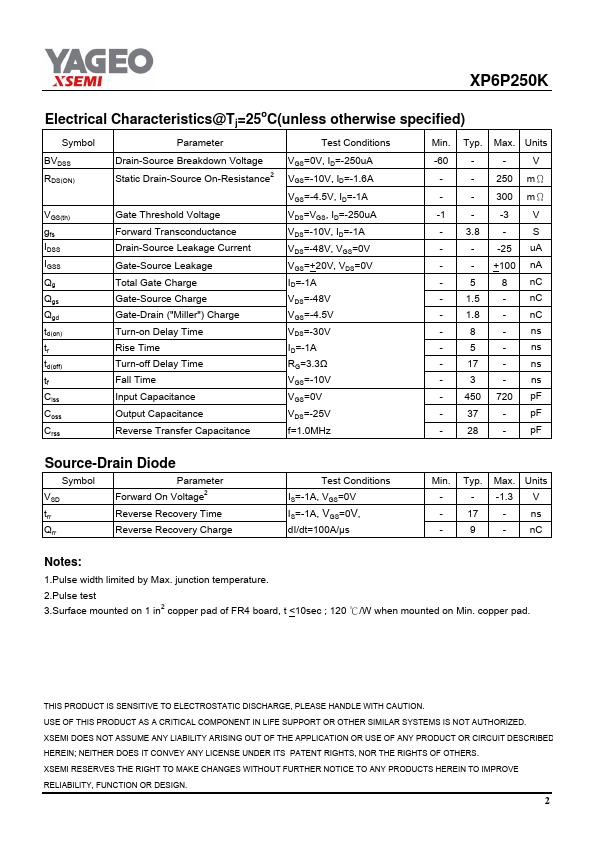

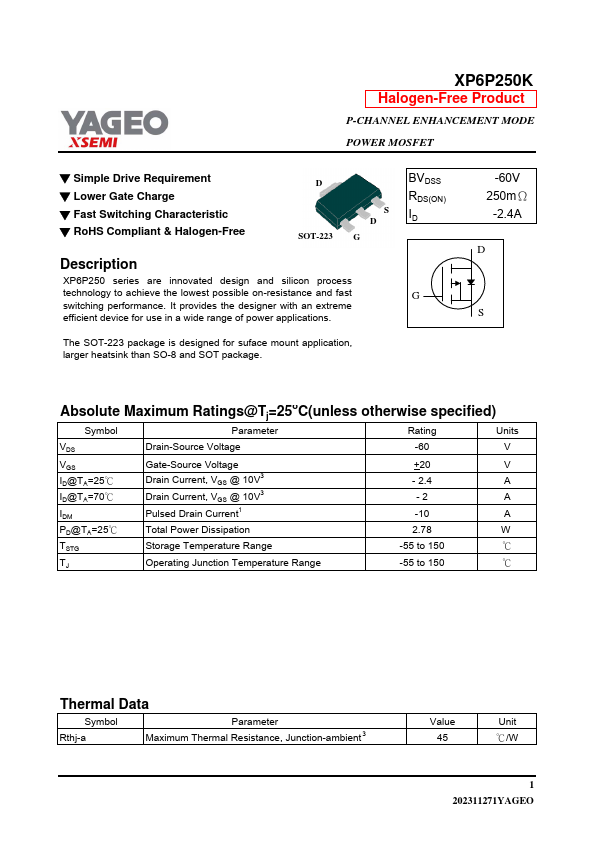

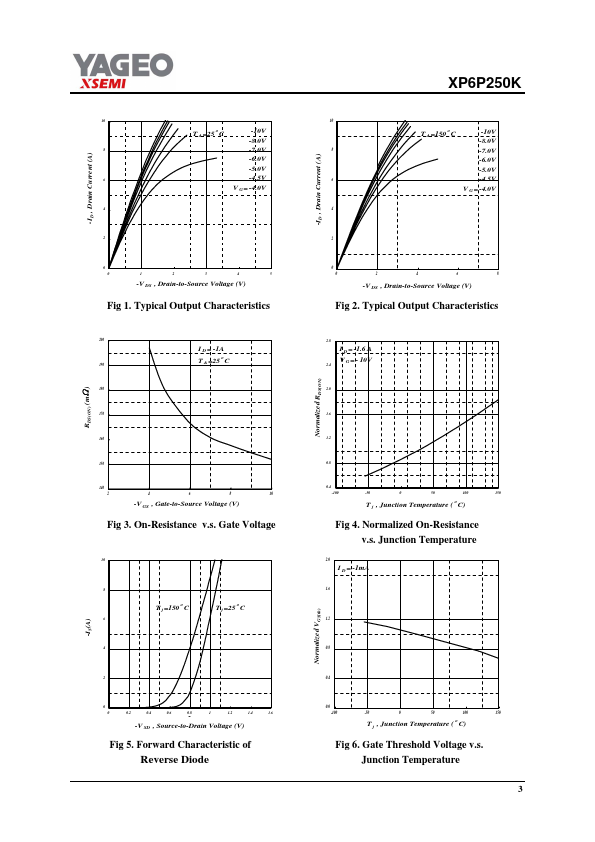

XP6P250K Datasheet Preview — Preview of XP6P250K PDF

Datasheet Specifications

Part number: XP6P250K
Manufacturer: YAGEO
File Size: 191.37 KB
Datasheet: XP6P250K-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-223 package is designed for suface mount application, larger heatsink than SO-8 and SOT package. -60V 250mΩ -2.4A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage -60 V VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ T
