XP6P025H Datasheet - YAGEO

XP6P025H P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP6P025 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. BVDSS RDS(ON) ID -60V 25mΩ -40A G D S TO-252(H).

XP6P025H-YAGEO.pdf

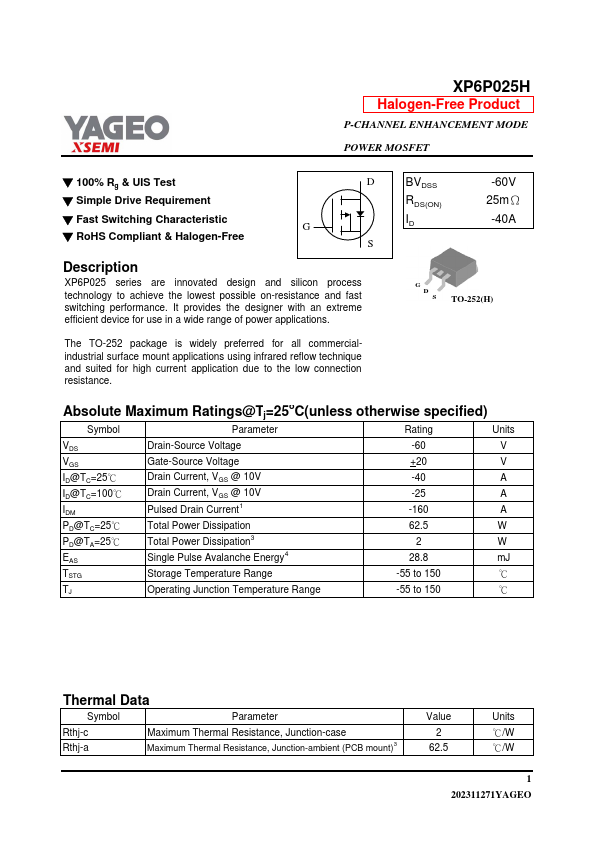

XP6P025H Datasheet Preview — Preview of XP6P025H PDF

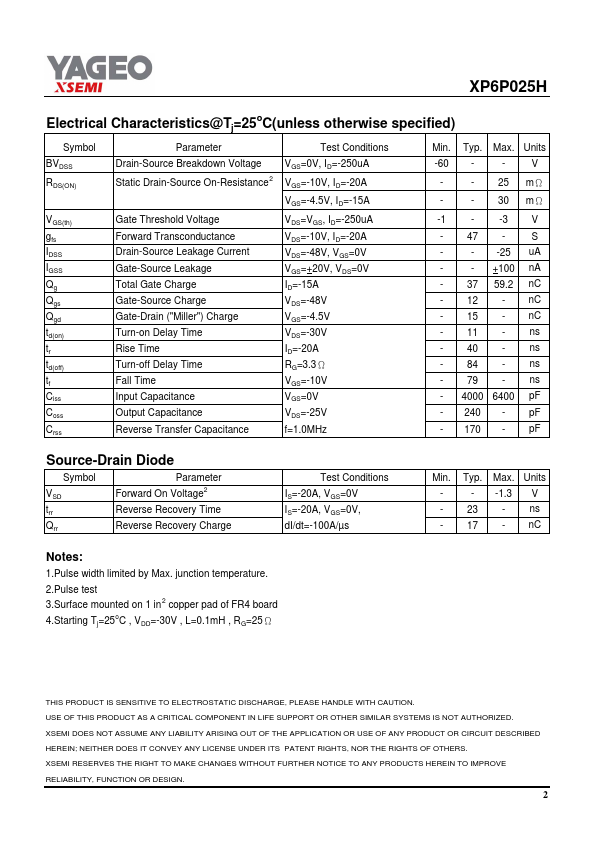

XP6P025H Datasheet Preview Page 2

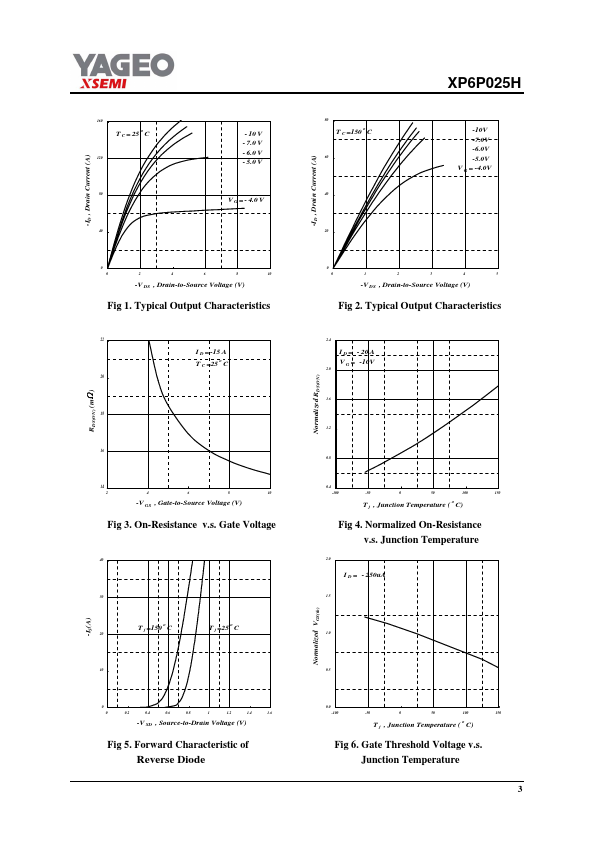

XP6P025H Datasheet Preview Page 3

Datasheet Details

Part number:

XP6P025H

Manufacturer:

YAGEO

File Size:

180.78 KB

Description:

P-channel enhancement mode power mosfet.
