XP6P050I P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6P050I Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Character.
XP6P050 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

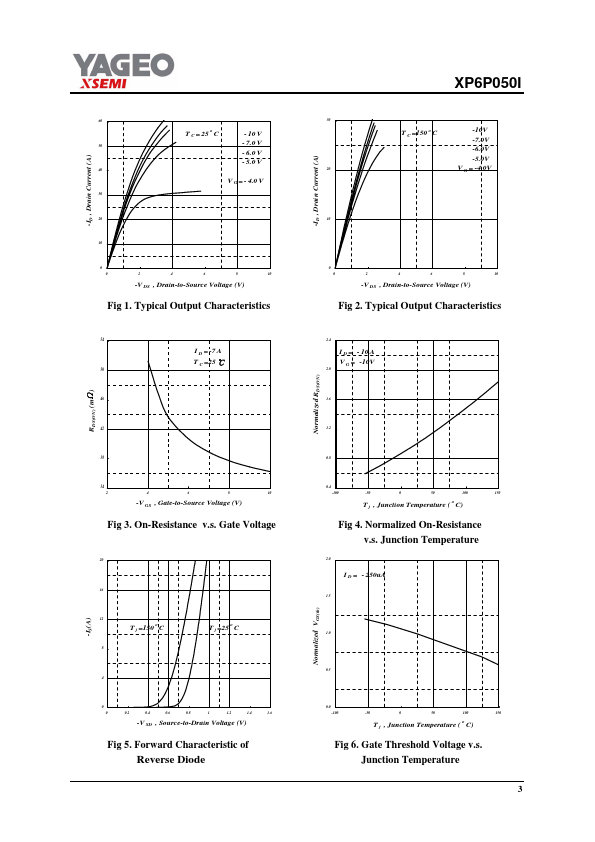

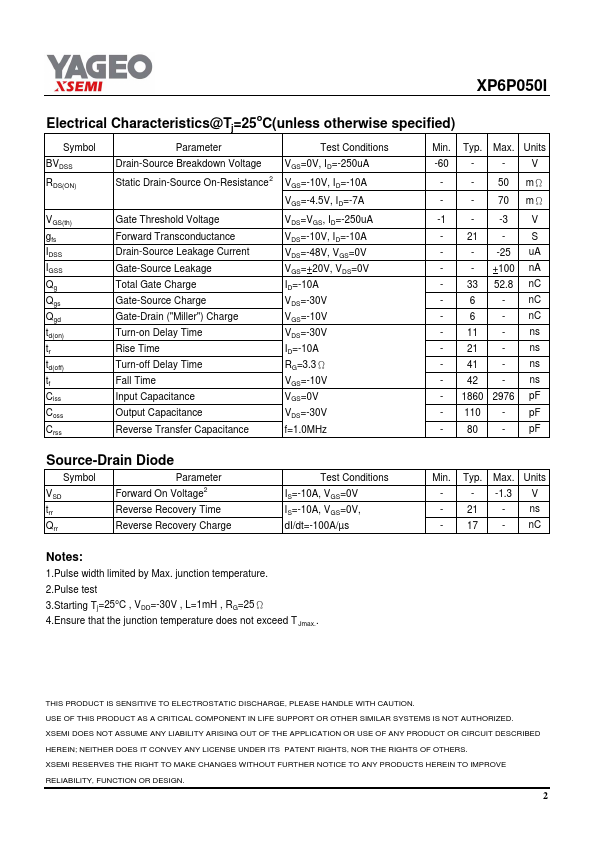

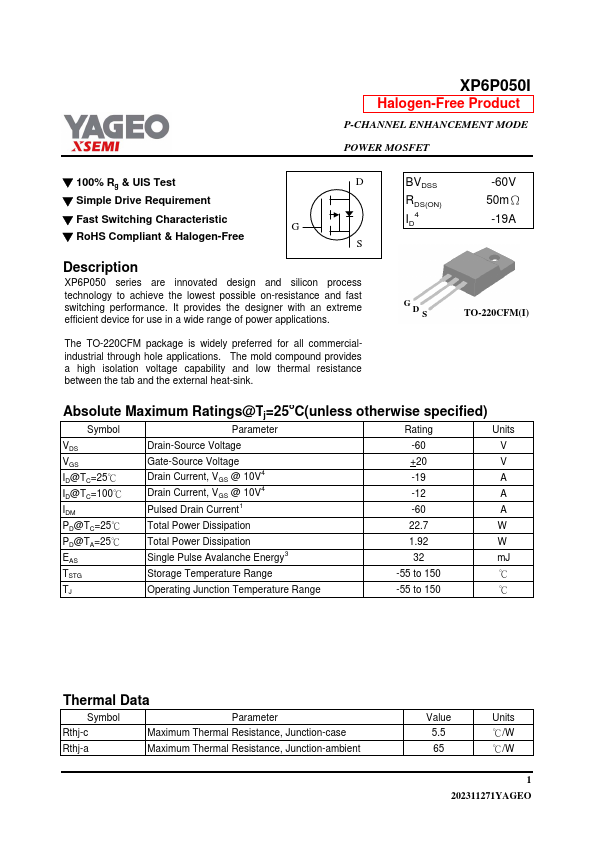

XP6P050I Datasheet Preview — Preview of XP6P050I PDF

Datasheet Specifications

Part number: XP6P050I
Manufacturer: YAGEO
File Size: 218.35 KB
Datasheet: XP6P050I-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID4 -60V 50mΩ -19A GD S TO-220CFM(I) The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. Absolute M
