XP9465GEM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9465GEM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ Low On-resistance.
XP9465 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

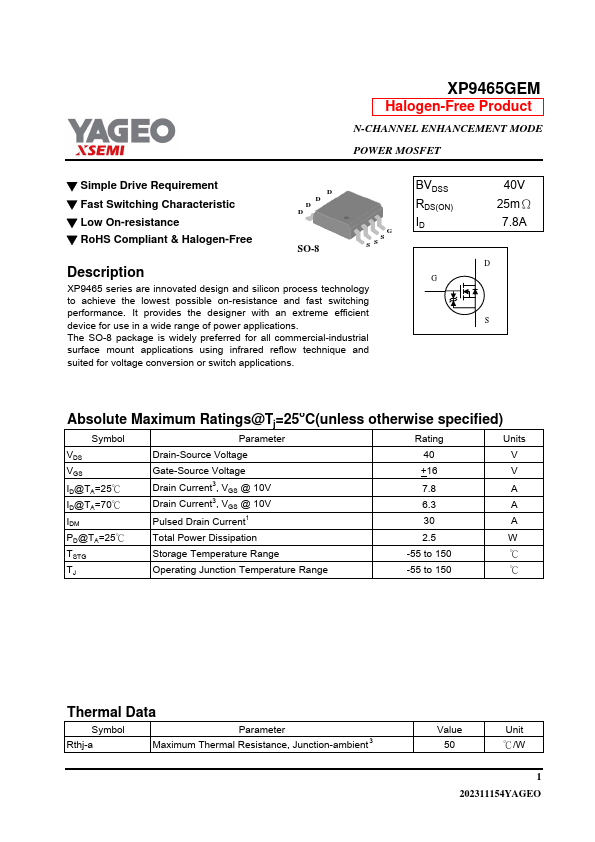

XP9465GEM Datasheet Preview — Preview of XP9465GEM PDF

Datasheet Specifications

Part number: XP9465GEM
Manufacturer: YAGEO
File Size: 241.59 KB
Datasheet: XP9465GEM-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G 40V 25mΩ 7.8A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Param
