XP9467AGM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9467AGM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP9467A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

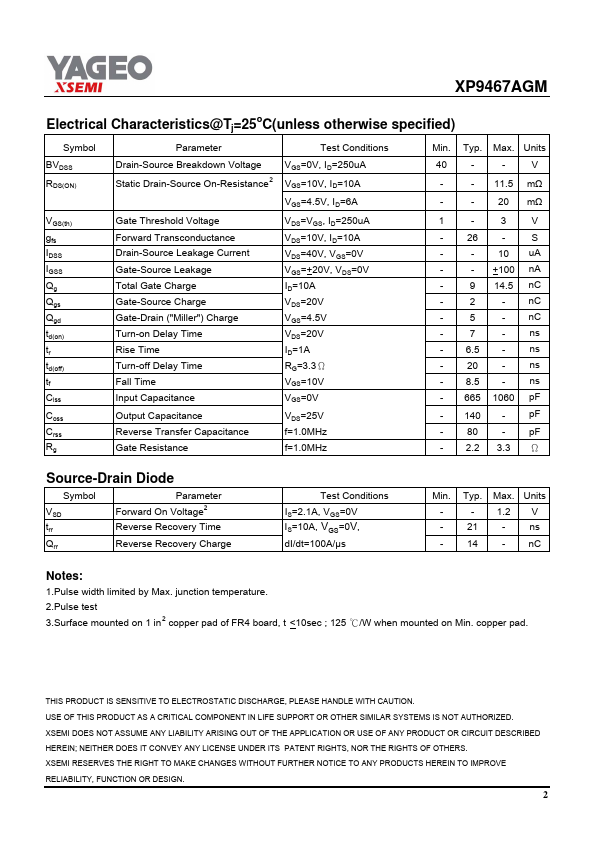

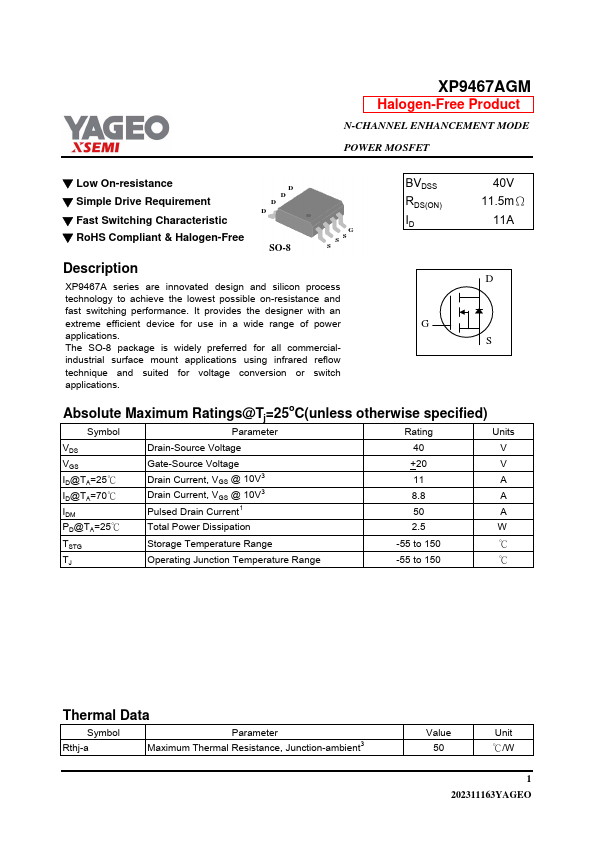

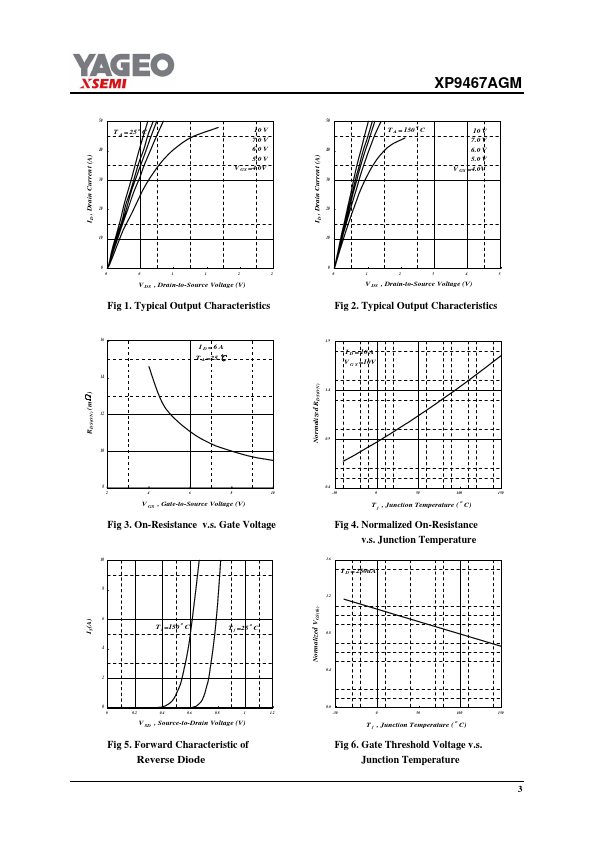

XP9467AGM Datasheet Preview — Preview of XP9467AGM PDF

Datasheet Specifications

Part number: XP9467AGM
Manufacturer: YAGEO
File Size: 239.72 KB
Datasheet: XP9467AGM-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID 40V 11.5mΩ 11A D G S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Para
