XP9468GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9468GH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characteri.
XP9468 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

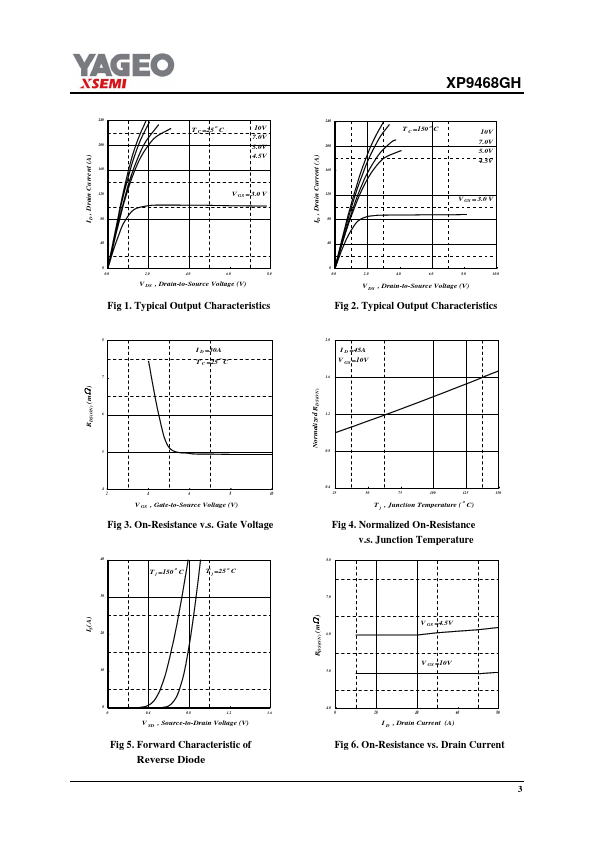

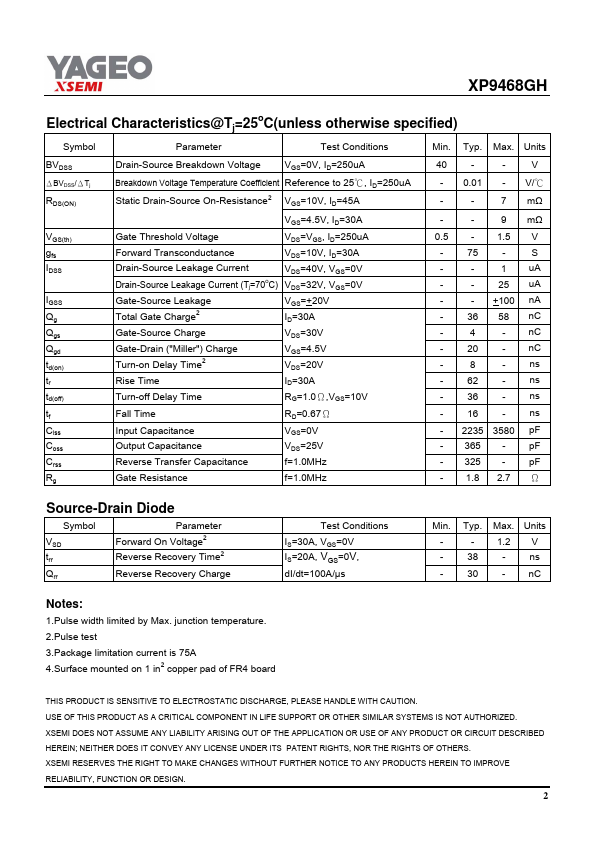

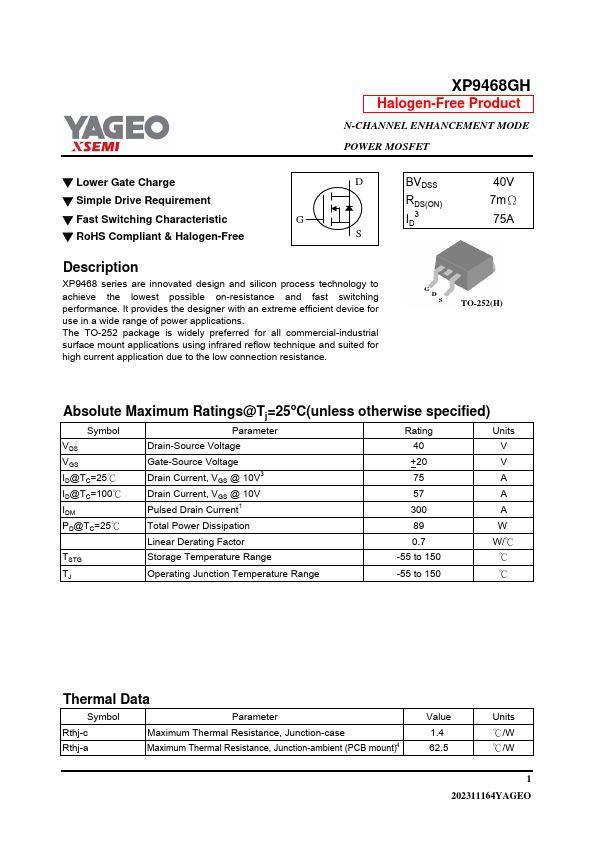

XP9468GH Datasheet Preview — Preview of XP9468GH PDF

Datasheet Specifications

Part number: XP9468GH
Manufacturer: YAGEO
File Size: 209.86 KB
Datasheet: XP9468GH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID3 40V 7mΩ 75A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless ot
