XP9971GI N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9971GI Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Fast Switching Performance ▼ Simple Drive Requirement ▼ Full Isolation Packag.
XP9971 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

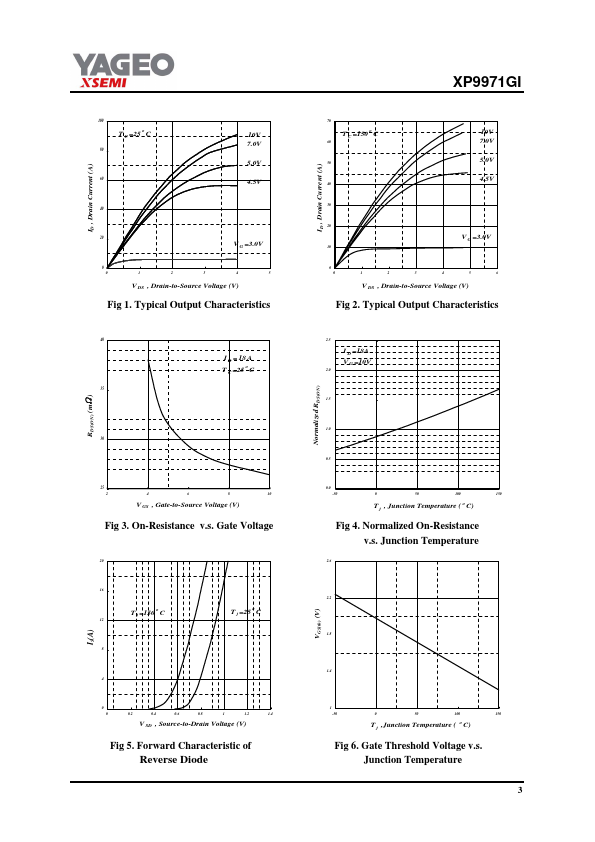

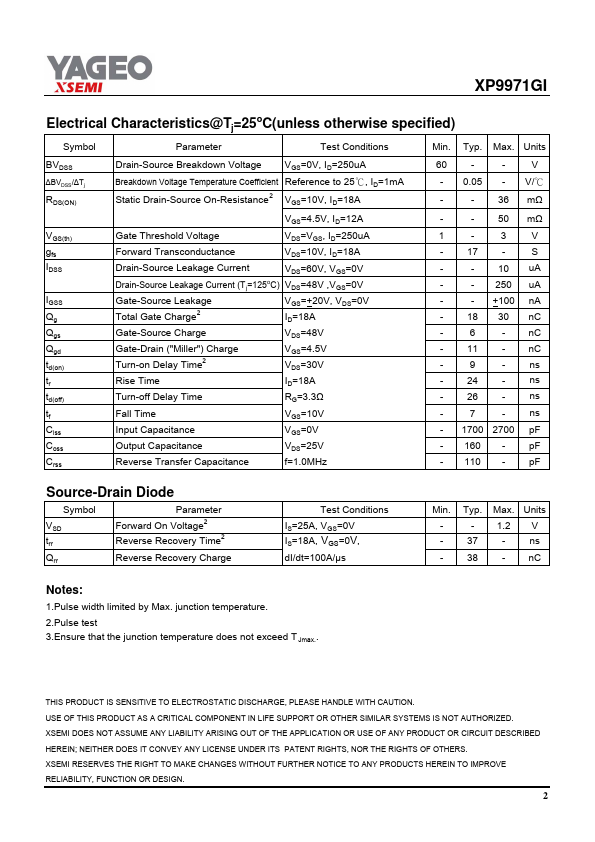

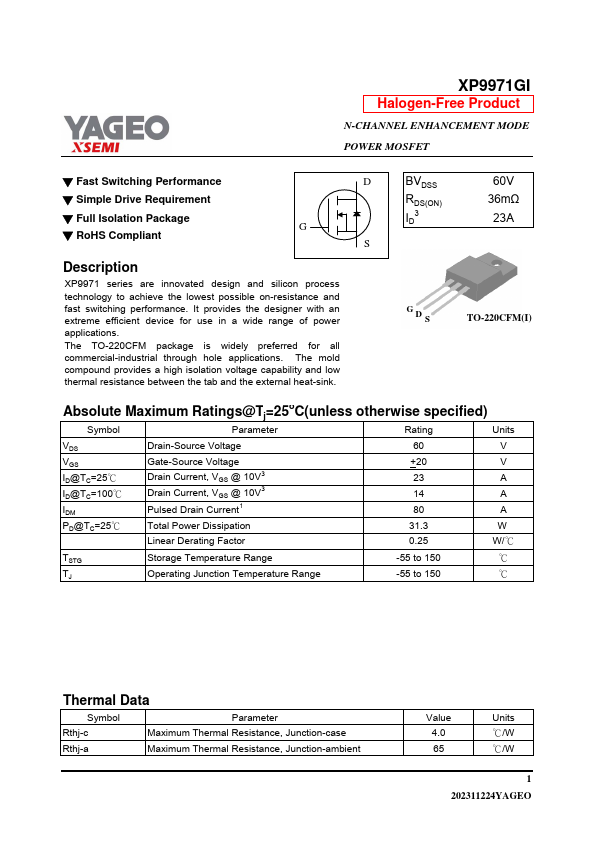

XP9971GI Datasheet Preview — Preview of XP9971GI PDF

Datasheet Specifications

Part number: XP9971GI
Manufacturer: YAGEO
File Size: 252.47 KB
Datasheet: XP9971GI-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercial-industrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. GD S TO-220CFM(I) Absolute Maximum Ratings@Tj=25oC(unless other
