XP9972GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9972GH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Lower Gate Charge ▼ Fast Switching Characteri.
XP9972 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

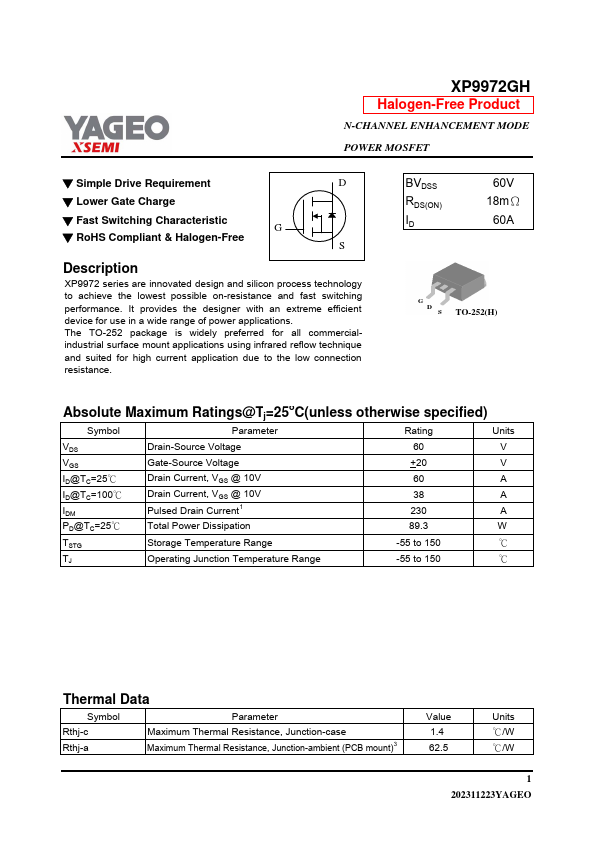

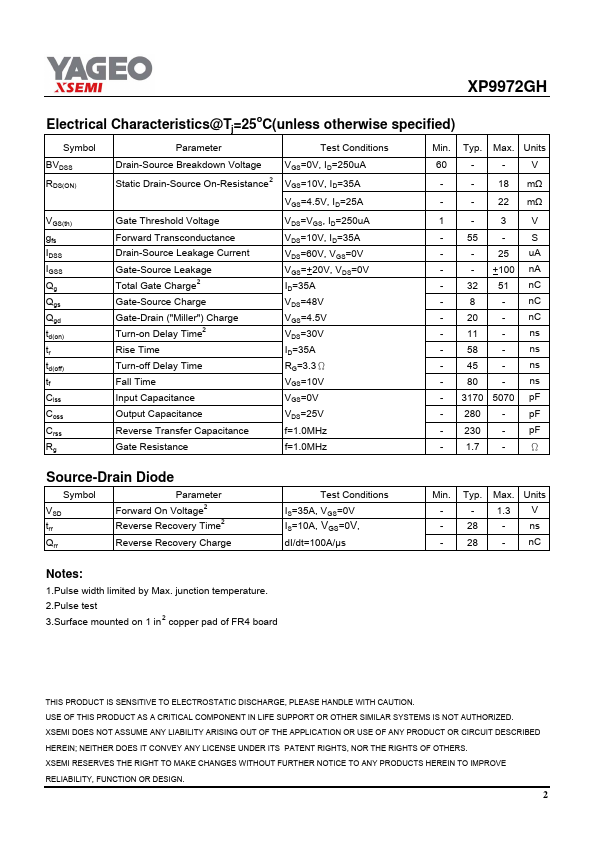

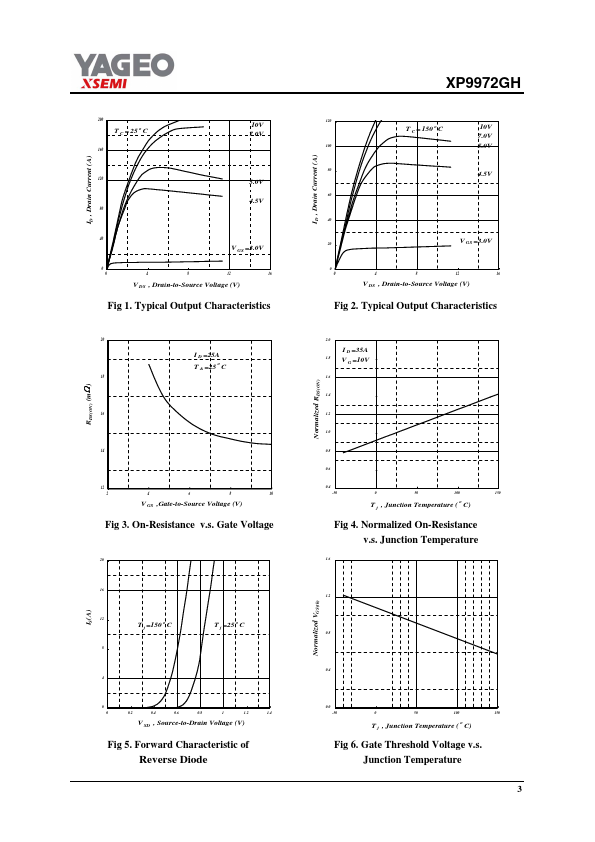

XP9972GH Datasheet Preview — Preview of XP9972GH PDF

Datasheet Specifications

Part number: XP9972GH
Manufacturer: YAGEO
File Size: 209.26 KB
Datasheet: XP9972GH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID 60V 18mΩ 60A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless othe
