XP9973GJ N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9973GJ Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP9973 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

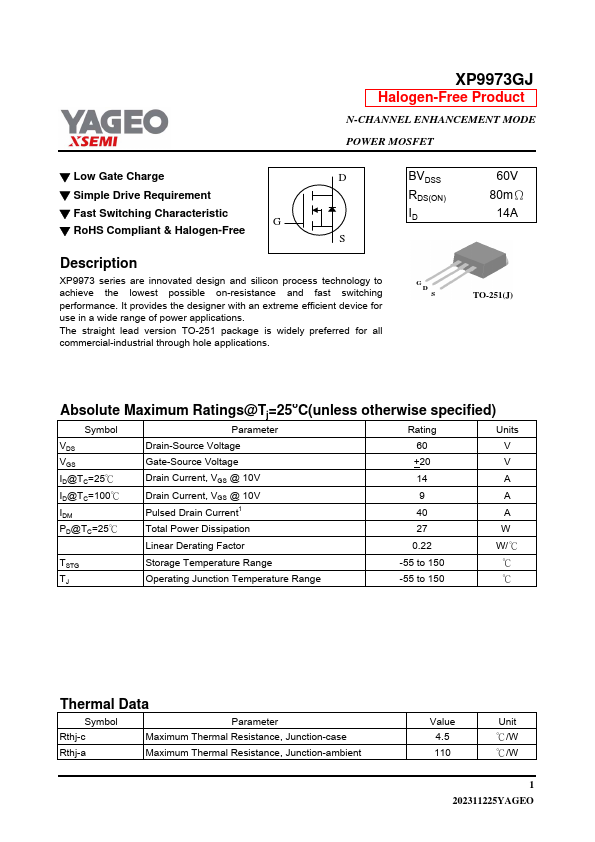

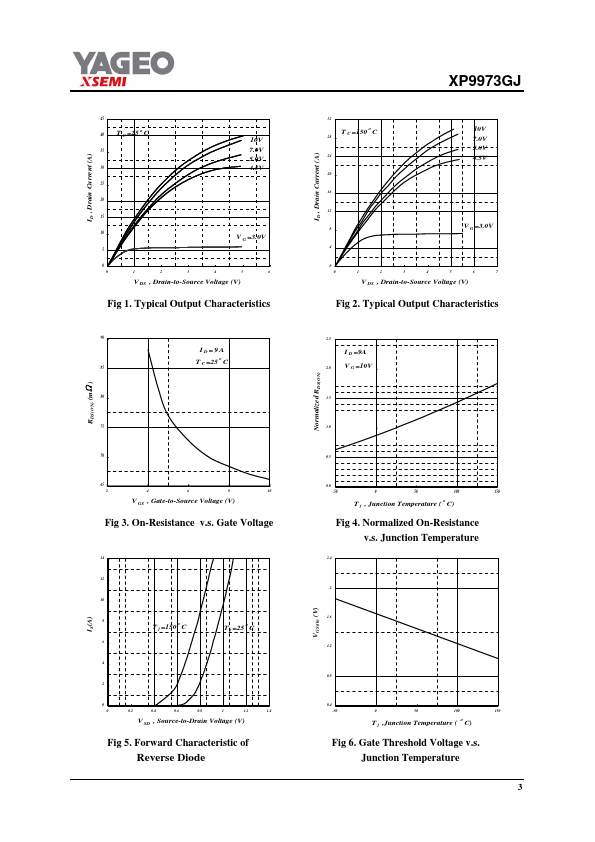

XP9973GJ Datasheet Preview — Preview of XP9973GJ PDF

Datasheet Specifications

Part number: XP9973GJ
Manufacturer: YAGEO
File Size: 174.58 KB
Datasheet: XP9973GJ-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The straight lead version TO-251 package is widely preferred for all commercial-industrial through hole applications. BVDSS RDS(ON) ID G D S 60V 80mΩ 14A TO-251(J) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TC=25℃ Drain-Source Volt
