YAC520

High Grade Volume Control

YAMAHA CORPORATION

YAC520 Datasheet (395.00 KB)

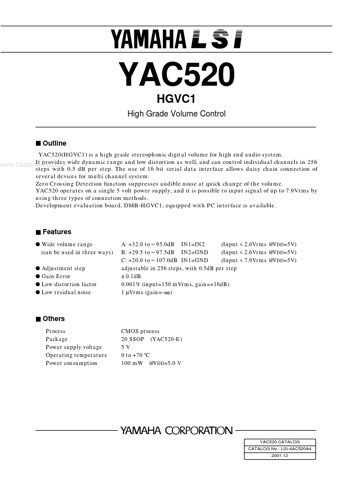

YAC520 Datasheet Preview — Preview of YAC520 PDF Datasheet

Datasheet Details

Part number:

YAC520

Manufacturer:

YAMAHA CORPORATION

File Size:

395.00 KB

Description:

High grade volume control

YAC520 Features

* q Wide volume range (can be used in three ways) q Adjustment step q Gain Error q Low distortion factor q Low residual noise A: +32.0 to

* 95.0dB IN1=IN2 (Input < 2.0Vrms @VDD=5V) B: +29.5 to

* 97.5dB IN2=GND (Input < 2.6Vrms @VDD=5V) C: +20.0 to

* 107.0dB IN1=GND (Input < 7.9

YAC520 General Description

of functions.) ZCEN

* Zero Crossing Enable (Input) Zero crossing control pin. Making this pin “high” enables a mode where volume change is performed after detecting zero crossing. The volume change immediately after writing data when this pin is “low”. TE

* Test Enable (Input) Test m.
