YAC526 Electric Variable Resistance 3

of functions *Analog functions Maximum input voltage The maximum amplitude of the input signal that is inputted to the analog input pin of YAC526 is 4.2Vrms when power supply voltage is ±6V. For a system to which a signal exceeding the power supply voltage (AVDD/AVSS) may be applied, use externa.

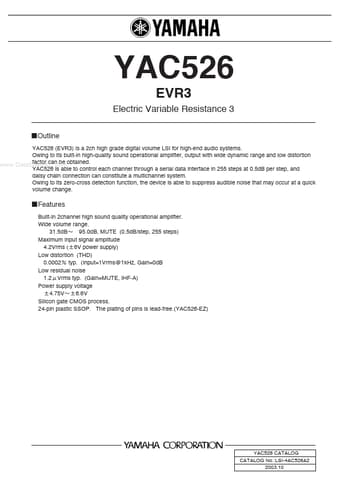

YAC526 EVR3 Electric Variable Resistance 3 Outline YAC526 (EVR3) is a 2ch high grade digital volume LSI for high-end audio systems. Owing to its built-in high-quality sound operational amplifier, output with wide dynamic range and low distortion factor can be obtained. www.DataSheet4U.com YAC526 is able to control each channel through a serial data interface in 255 steps at 0.5dB per step, and daisy chain connection can constitute a multichannel system. Owing to its zero-cross detection fun.

YAC526 Features

* Built-in 2channel high sound quality operational amplifier. Wide volume range. 31.5dB〜 95.0dB, MUTE (0.5dB/step, 255 steps) Maximum input signal amplitude 4.2Vrms (±6V power supply) Low distortion (THD) 0.0002％ typ. (Input=1Vrms@1kHz, Gain=0dB Low residual noise 1.2μVrms typ. (Gain=MUTE, IHF-A) Powe
