YAC523

Electric Variable Resistance 2

YAMAHA CORPORATION

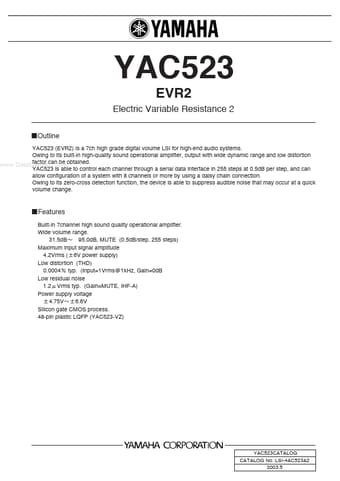

YAC523 Datasheet (427.10 KB)

YAC523 Datasheet Preview — Preview of YAC523 PDF Datasheet

Datasheet Details

Part number:

YAC523

Manufacturer:

YAMAHA CORPORATION

File Size:

427.10 KB

Description:

Electric variable resistance 2

YAC523 Features

* Built-in 7channel high sound quality operational amplifier. Wide volume range. 31.5dB〜 95.0dB, MUTE (0.5dB/step, 255 steps) Maximum input signal amplitude 4.2Vrms (±6V power supply) Low distortion (THD) 0.0004％ typ. (Input=1Vrms@1kHz, Gain=0dB Low residual noise 1.2μVrms typ. (Gain=MUTE, IHF-A) Powe

YAC523 General Description

of functions
*Analog functions Maximum input voltage The maximum amplitude of the input signal that is inputted to the analog input pin of YAC523 is 4.2Vrms when power supply voltage is ±6V. For a system to which a signal exceeding the power supply voltage (AVDD/AVSS) may be applied, use externa.
