SF12C04C, SF12C01C - Glass Passivated Super Fast Recovery Rectifier

📥 Download Datasheet

SF12C04C Datasheet Preview — This datasheet PDF includes multiple part numbers: SF12C04C, SF12C01C. Please refer to the document for exact specifications by model.

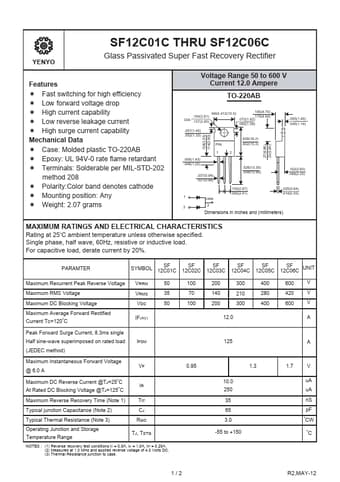

datasheet Preview Page 2

Datasheet Details

Part number	SF12C04C, SF12C01C
Manufacturer	YENYO
File Size	587.72 KB
Description	Glass Passivated Super Fast Recovery Rectifier
Datasheet	SF12C01C-YENYO.pdf
Note	This datasheet PDF includes multiple part numbers: SF12C04C, SF12C01C. Please refer to the document for exact specifications by model.

SF12C04C Product details

Features

Fast switching for high efficiency.
Low forward voltage drop.
High current capability.
Low reverse leakage current.
High surge current capability Mechanical Data.
Case: Molded plastic TO-220AB.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: Solderable per MIL-STD-202 method 208.
Polarity:Color band denotes cathode.
Mounting position: Any.
Weight: 2.07 grams Voltage Range 50 to 600 V Current 12.
