MM3Z2V0W - Silicon Planar Zener Diodes

📥 Download Datasheet

MM3Z2V0W Datasheet Preview — Preview of MM3Z2V0W PDF

Datasheet Details

Part number: MM3Z2V0W
Manufacturer: YFW
File Size: 1.39 MB
Datasheet: MM3Z2V0W-YFW.pdf
Description: Silicon Planar Zener Diodes

MM3Z2V0W Product details

Description

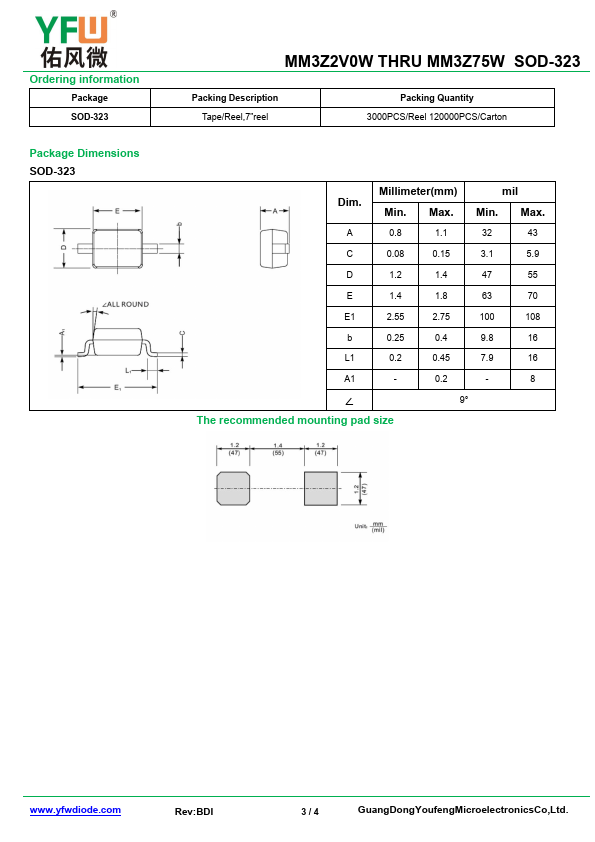

Tape/Reel,7”reel Packing Quantity 3000PCS/Reel 120000PCS/Carton Dim.Millimeter(mm) Min.Max.mil Min.Max.A 0.8 1.1 32 43 C 0.08 0.15 3.1 5.9 D 1.2 1.4 47 55 E 1.4 1.8 63 70 E1 2.55 2.75 100 108 b 0.25 0.4 9.8 16 L1 0.2 0.45 7.9 16 A1 - 0.2 - 8 ∠ 9° The recommended mounting pad size www.yfwdiode.com Rev:BDI 3/4 GuangDongYoufengMicroelectronicsCo,Ltd.MM3Z2V0W THRU MM3Z75W SOD-323 Disclaimer The information presented in this document is for re

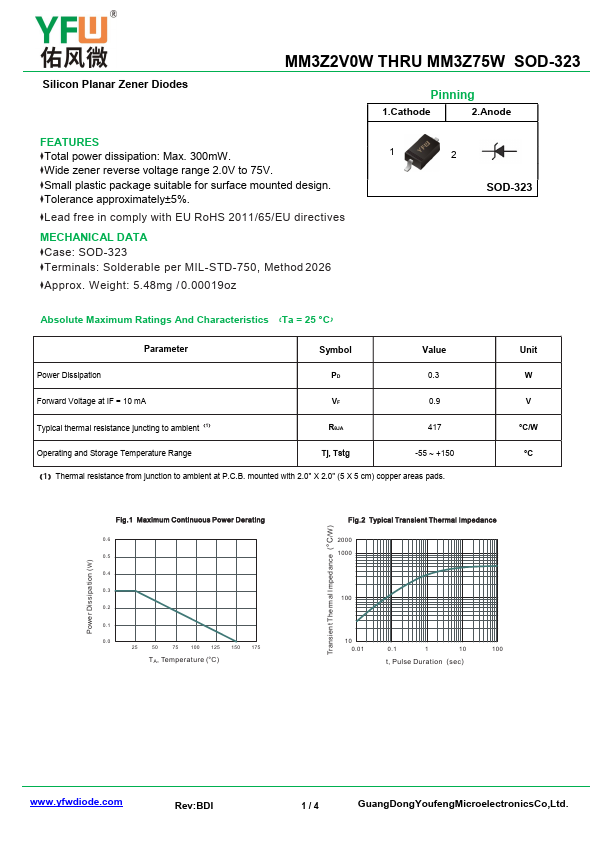

Features

Total power dissipation: Max. 300mW. 1.
Wide zener reverse voltage range 2.0V to 75V.
Small plastic package suitable for surface mounted design.
Tolerance approximately±5%.
Lead free in comply with EU RoHS 2011/65/EU directives.
