Description
Tape/Reel,7”reel
Packing Quantity 3000PCS/Reel 120000PCS/Carton

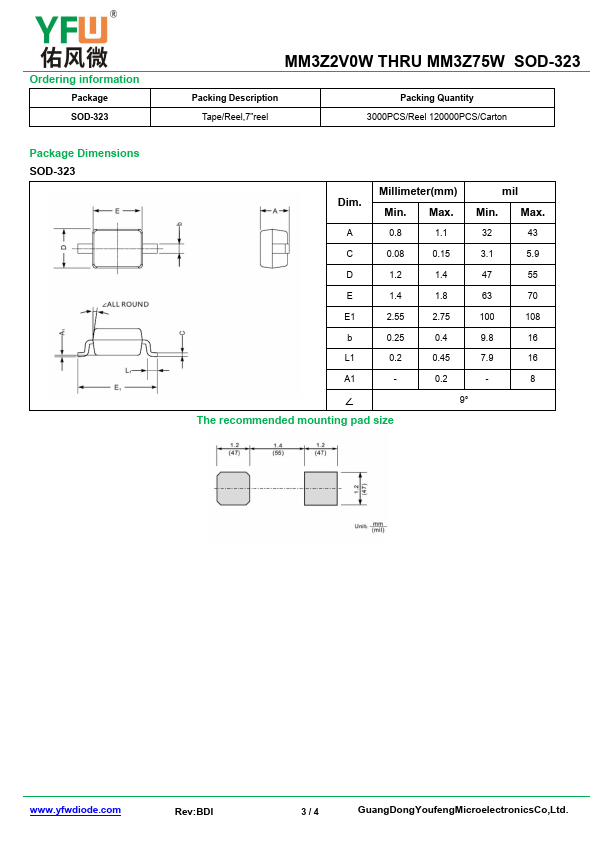

Dim.Millimeter(mm) Min.Max.mil Min.Max.A
0.8
1.1
32
43
C
0.08
0.15
3.1
5.9
D
1.2
1.4
47
55
E
1.4
1.8
63
70
E1
2.55
2.75
100
108
b
0.25
0.4
9.8
16
L1
0.2
0.45
7.9
16
A1
-
0.2
-
8
∠
9°
The recommended mounting pad size
www.yfwdiode.com
Rev:BDI
3/4
GuangDongYoufengMicroelectronicsCo,Ltd.MM3Z2V0W THRU MM3Z75W SOD-323
Disclaimer
The information presented in this document is for re

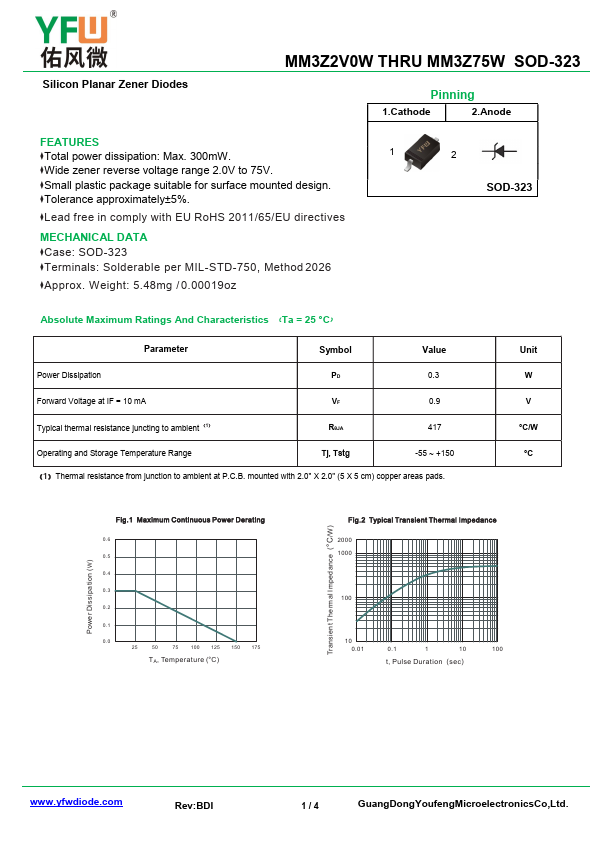

Features
- Total power dissipation: Max. 300mW. 1.
- Wide zener reverse voltage range 2.0V to 75V.
- Small plastic package suitable for surface mounted design.
- Tolerance approximately±5%.
- Lead free in comply with EU RoHS 2011/65/EU directives.
