MM3Z7V5W, MM3Z2V0W - Silicon Planar Zener Diodes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MM3Z7V5W, MM3Z2V0W. Please refer to the document for exact specifications by model.

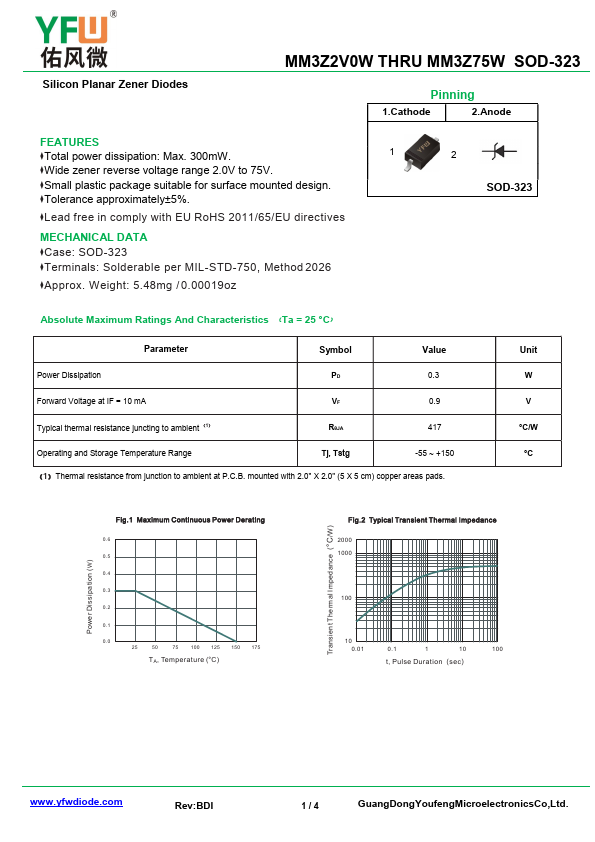

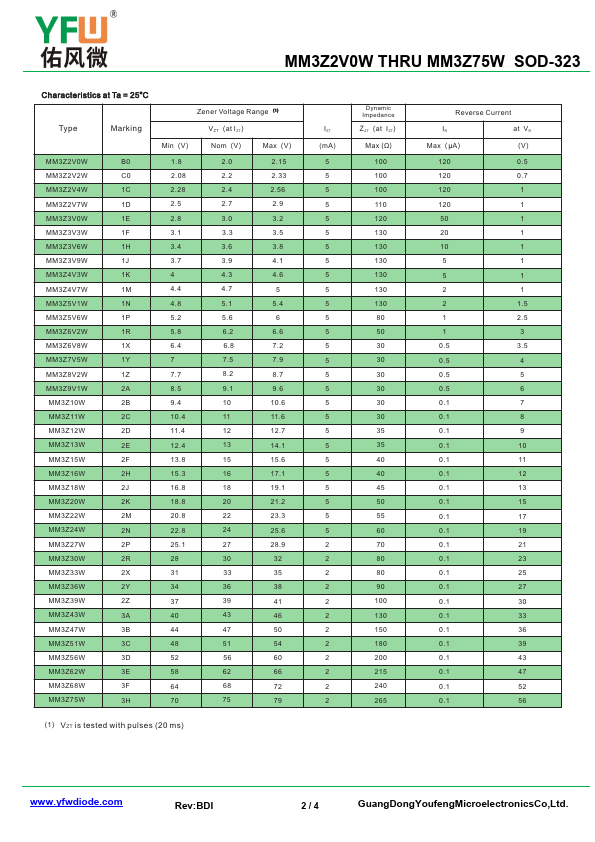

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MM3Z7V5W, MM3Z2V0W
Manufacturer YFW
File Size 1.39 MB
Description Silicon Planar Zener Diodes
Datasheet download datasheet MM3Z2V0W-YFW.pdf
Note This datasheet PDF includes multiple part numbers: MM3Z7V5W, MM3Z2V0W.
Please refer to the document for exact specifications by model.

MM3Z7V5W Product details

Description

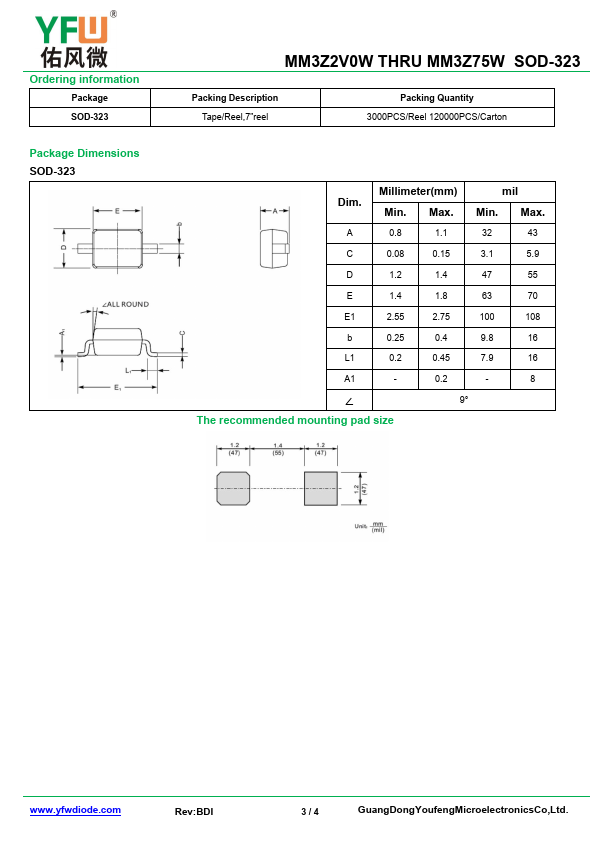

Tape/Reel,7”reel Packing Quantity 3000PCS/Reel 120000PCS/Carton Dim.Millimeter(mm) Min.Max.mil Min.Max.A 0.8 1.1 32 43 C 0.08 0.15 3.1 5.9 D 1.2 1.4 47 55 E 1.4 1.8 63 70 E1 2.55 2.75 100 108 b 0.25 0.4 9.8 16 L1 0.2 0.45 7.9 16 A1 - 0.2 - 8 ∠ 9° The recommended mounting pad size www.yfwdiode.com Rev:BDI 3/4 GuangDongYoufengMicroelectronicsCo,Ltd.MM3Z2V0W THRU MM3Z75W SOD-323 Disclaimer The information presented in this document is for re

Features
