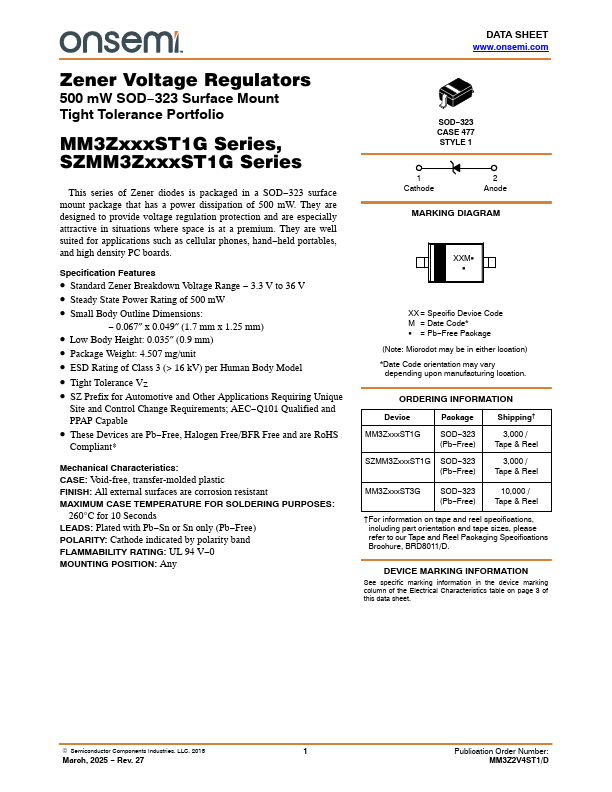

DATA SHEET www.onsemi.com Zener Voltage Regulators 500 mW SOD 323 Surface Mount Tight Tolerance Portfolio MM3ZxxxST1G Series, SZMM3ZxxxST1G Series This series of Zener diodes is packaged in a SOD 323 surface mount package that has a power dissipation of 500 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portable.

MM3Z7V5ST1G Features

* Standard Zener Breakdown Voltage Range

* 3.3 V to 36 V

* Steady State Power Rating of 500 mW

* Small Body Outline Dimensions:

* 0.067″ x 0.049″ (1.7 mm x 1.25 mm)

* Low Body Height: 0.035″ (0.9 mm)

* Package Weight: 4.507 mg/unit
