UTC3842 - Current Mode PWM Controller

Name: UTC3842
SKU: UTC3842-918011

YOUWANG ELECTRONICS

The UTC3842 by YOUWANG ELECTRONICS is a Current Mode PWM Controller. Below is the official datasheet preview.

Datasheet Details

Part number	UTC3842
Manufacturer	YOUWANG ELECTRONICS
File Size	123.68 KB
Description	Current Mode PWM Controller
Datasheet	UTC3842-YOUWANGELECTRONICS.pdf

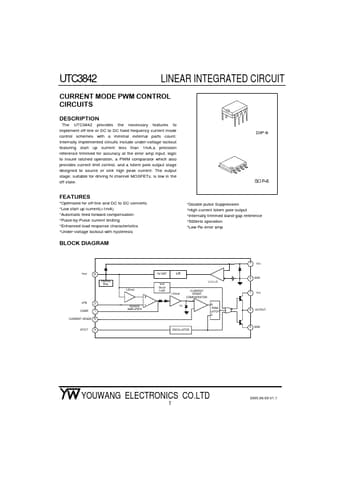

Additional preview pages of the UTC3842 datasheet.

The UTC3842 provides the necessary

to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include under-voltage lockout featuring start up current less than 1mA,a precision reference trimmed for accuracy at the error amp input, logic to insure latched operation, a PWM comparator which also provides current limit control, and a totem pole output stage designed to source or sink high peak current. The output stage, suitable for driving N ch.
