UTC17821 Datasheet, CIRCUIT, YOUWANG ELECTRONICS

UTC17821 Features

• Circuit
• Vcc=11V,output=5W(8 )
• Built-in standby function
• Built-in DC volume circuits APPLICATIONS
• TVs, audio equipment, personal computers, active speake

PDF File Details

Part number:

UTC17821

Manufacturer:

YOUWANG ELECTRONICS

File Size:

72.33kb

Download:

📄 Datasheet

Description:

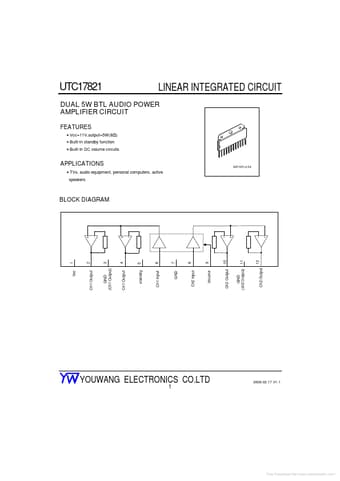

Dual 5w btl audio power amplifier circuit. Pin No. 1 2 3 4 5 6 LINEAR INTEGRATED CIRCUIT Pin No. 7 8 9 10 11 12 Function Vcc Ch1 Output(+) GND(Output ch1) Ch1 Output(-) Stand

UTC17821 Application

• Applications
• TVs, audio equipment, personal computers, active speakers SIP12H-2.54 BLOCK DIAGRAM 10 11 GND (Ch1 Output) Ch1 Output
