UTC2822E, UTC2822D DUAL LOW VOLTAGE POWER AMPLIFIER

YOUWANG ELECTRONICS

Description

UTC2822D/E LINEAR INTEGRATED CIRCUIT DUAL LOW VOLTAGE POWER AMPLIFIER .
The UTC2822D/E is a monolithic integrated audio amplifier in a 8-pin DIP and SOP package.

📥 Download Datasheet

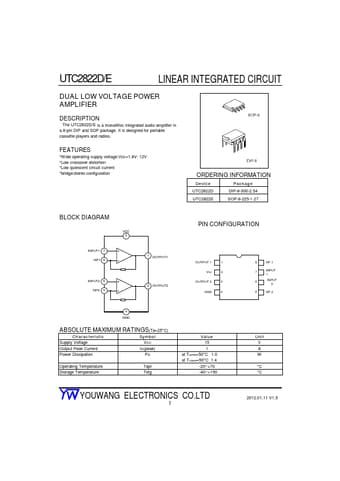

UTC2822E Datasheet Preview — This datasheet PDF includes multiple part numbers: UTC2822E, UTC2822D. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: UTC2822E, UTC2822D
Manufacturer: YOUWANG ELECTRONICS
File Size: 59.11 KB
Datasheet: UTC2822D-YOUWANGELECTRONICS.pdf
Description: DUAL LOW VOLTAGE POWER AMPLIFIER
Note: This datasheet PDF includes multiple part numbers: UTC2822E, UTC2822D.
Please refer to the document for exact specifications by model.

Features

* Wide operating supply voltage:Vcc=1.8V- 12V
* Low crossover distortion
* Low quiescent circuit current
* bridge/stereo configuration ORDERING INFORMATION Device Package UTC2822D DIP-8-300-2.54 UTC2822E SOP-8-225-1.27 BLOCK DIAGRAM VCC 2 PIN CONFIGURATION INPUT1 7 NP1 8 INPUT
