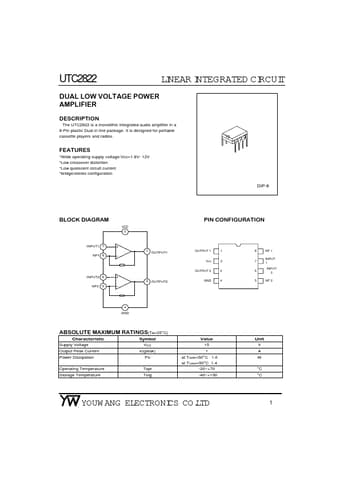

UTC2822 - Dual Low Voltage Power Amplifier
UTC2822 Features
* Wide operating supply voltage:Vcc=1.8V- 12V
* Low crossover distortion
* Low quiescent circuit current
* bridge/stereo configuration DIP-8 BLOCK DIAGRAM VCC 2 PIN CONFIGURATION INPUT1 7 1 NP1 8 OUTPUT1 OUTPUT 1 Vcc OUTPUT 2 1 2 3 4 8 7 6 5 NF 1 INPUT 1 INPUT 2 NF 2 INPUT2 6 3 NP2
