UTC2822H DUAL LOW VOLTAGE POWER AMPLIFIER

UTC2822H Description

www.DataSheet.co.kr UTC2822H DUAL LOW VOLTAGE POWER AMPLIFIER .
LINEAR INTEGRATED CIRCUIT The UTC2822H is a monolithic integrated audio amplifier in a 8-pin DIP and SOP package.

UTC2822H Features

* Wide operating supply voltage:Vcc=1.8V- 6V
* Low crossover distortion
* Low quiescent circuit current
* bridge/stereo configuration SOP-8 ORDERING INFORMATION Device UTC2822 UTC2822E Package DIP-8-300-2.54 SOP-8-225-1.27 PIN CONFIGURATION BLOCK DIAGRAM VCC 2 INPUT1 7 1 OUTPUT

📥 Download Datasheet

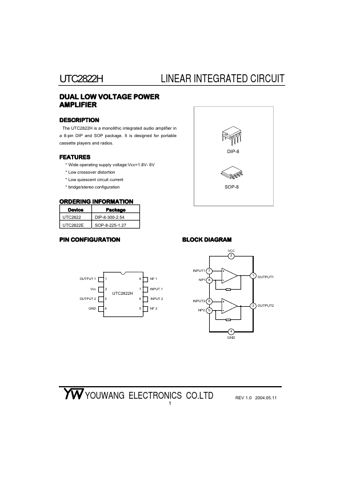

Preview of UTC2822H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC2822H
Manufacturer
YOUWANG ELECTRONICS
File Size
164.12 KB
Datasheet
UTC2822H_YOUWANGELECTRONICS.pdf
Description
DUAL LOW VOLTAGE POWER AMPLIFIER
