* Zener Voltage Range = 3.3 V to 100 V
* ESD Rating of Class 3 (>16 KV) per Human Body Model
* DO-41G Package
* Double Slug Type Construction
* Metallurgical Bonded Construction
* Oxide Passivated Die Mechanical Characteristics Case : Double slug type,
1N4756A
YS
655.44 KB
Glass zener voltage regulators.

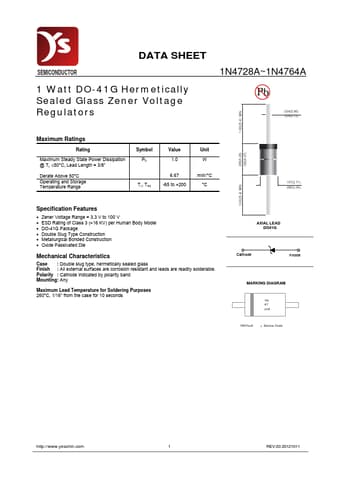

DATA SHEET
SEMICONDUCTOR
1 Watt DO-41G Hermetically Sealed Glass Zener Voltage Regulators
1N4728A~1N4764A
.034(0.86) .028(0.72)
1.00(25.4) MIN.
Max.
