* Ideal for printed circuit board Low forward voltage Low leakage current Polarity: marked on body Mounting position: Any Weight: 1.20 grams High temperature soldering : 260OC / 10 seconds at terminals Pb free product at available : 99% Sn above meet RoHS environment substance directive request .220(
2W08M
YS
302.13 KB
Single phase 2.0 amp bridge rectifiers.
SEMICONDUCTOR

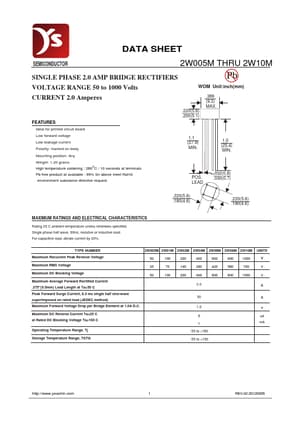

DATA SHEET 2W005M THRU 2W10M
SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS
VOLTAGE RANGE 50 to 1000 Volts
WOM Unit:inch(mm)
CURRENT 2.0 Am.
