SB1030FCT, SB1020FCT - 10A SCHOTTKY BARRIERRECTIFIER

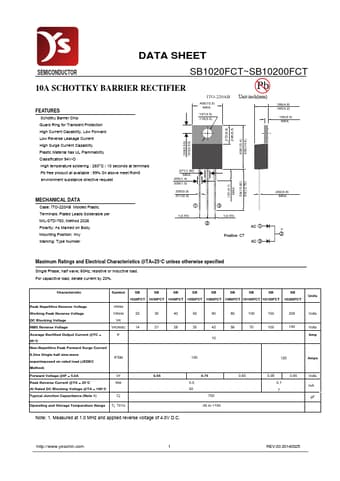

The SB1030FCT by YS is a 10A SCHOTTKY BARRIERRECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	SB1030FCT, SB1020FCT
Manufacturer	YS
File Size	1.09 MB
Description	10A SCHOTTKY BARRIERRECTIFIER
Datasheet	SB1020FCT-YS.pdf
Note	This datasheet PDF includes multiple part numbers: SB1030FCT, SB1020FCT. Please refer to the document for exact specifications by model.
Additional preview pages of the SB1030FCT datasheet.

Schottky Barrier Chip Guard Ring for Transient Protection .406(10.3) MAX. .137(3.5) .118(3.0) High Current Capability, Low Forward Low Reverse Leakage Current .138(3.50) .100(2.55) High Surge Current Capability Plastic Material has UL Flammability Classification 94V-O High temperature soldering : 260OC / 10 seconds at terminals Pb free product at available : 99% Sn above meet RoHS environment substance directive request .071(1.80) MAX. .055(1.4) .039(1.0) .272(6.9) .248(6.3) .606(15.4).
